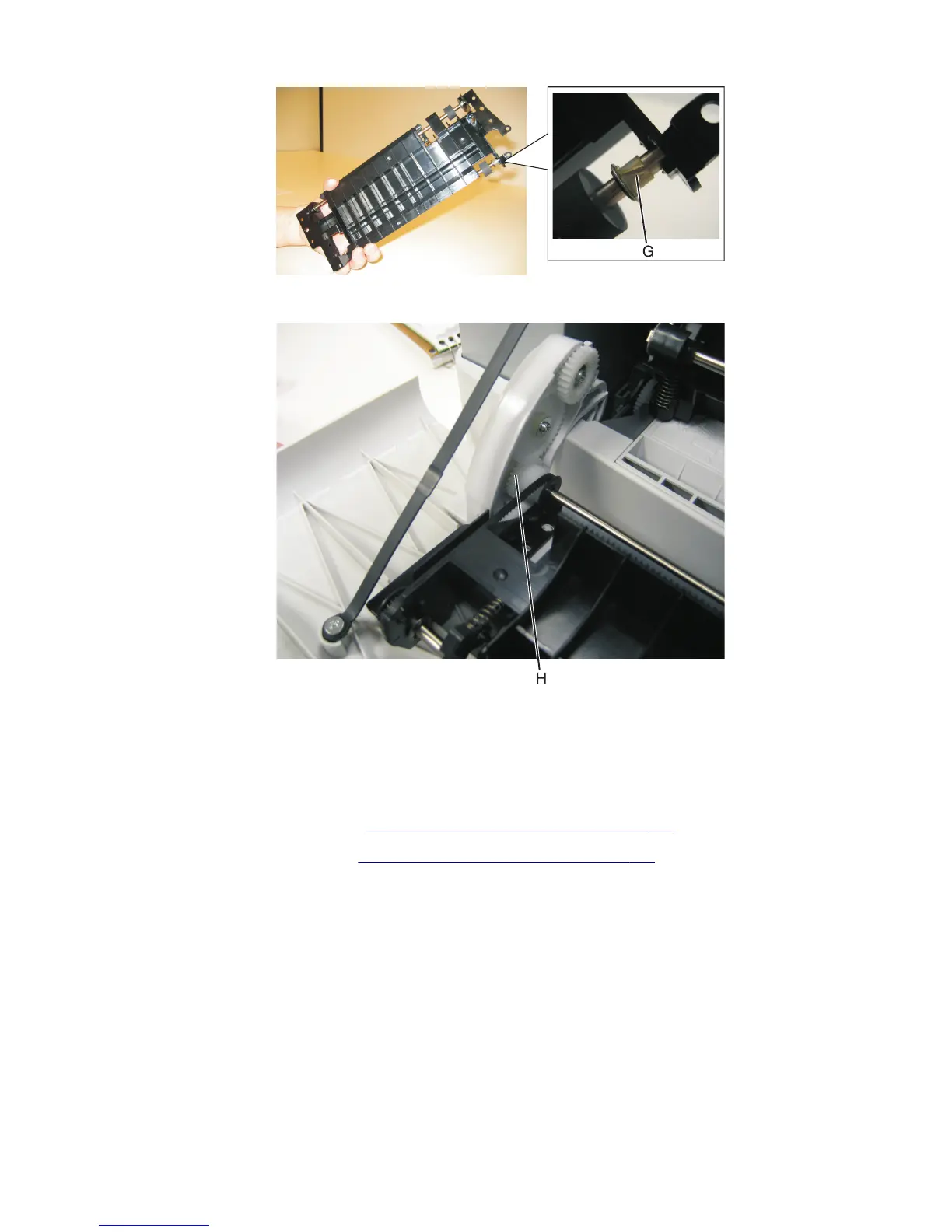

d Align the duplex aligner guide so that the gears (H) mesh on the left.
e Replace the eight screws in the duplex aligner.
f Close the front door.
Fuser assembly removal
1 Remove the right cover assembly. See “Right cover assembly removal” on page 232.
2 Remove the left cover assembly. See “Left cover assembly removal” on page 219.
3 Disconnect the two‑wire fuser cable (A) from the LVPS.
4 Position the fuser cable so that it can be pulled through from the front of the printer, and guide the cable through
to the front.
Warning—Potential Damage: Be careful not to damage the cable by pulling too hard or cutting the cable
insulation.
5027
Repair information
267
