Duplex sensor removal

1 Remove the imaging unit. See “Imaging unit (IU) removal” on page 246.

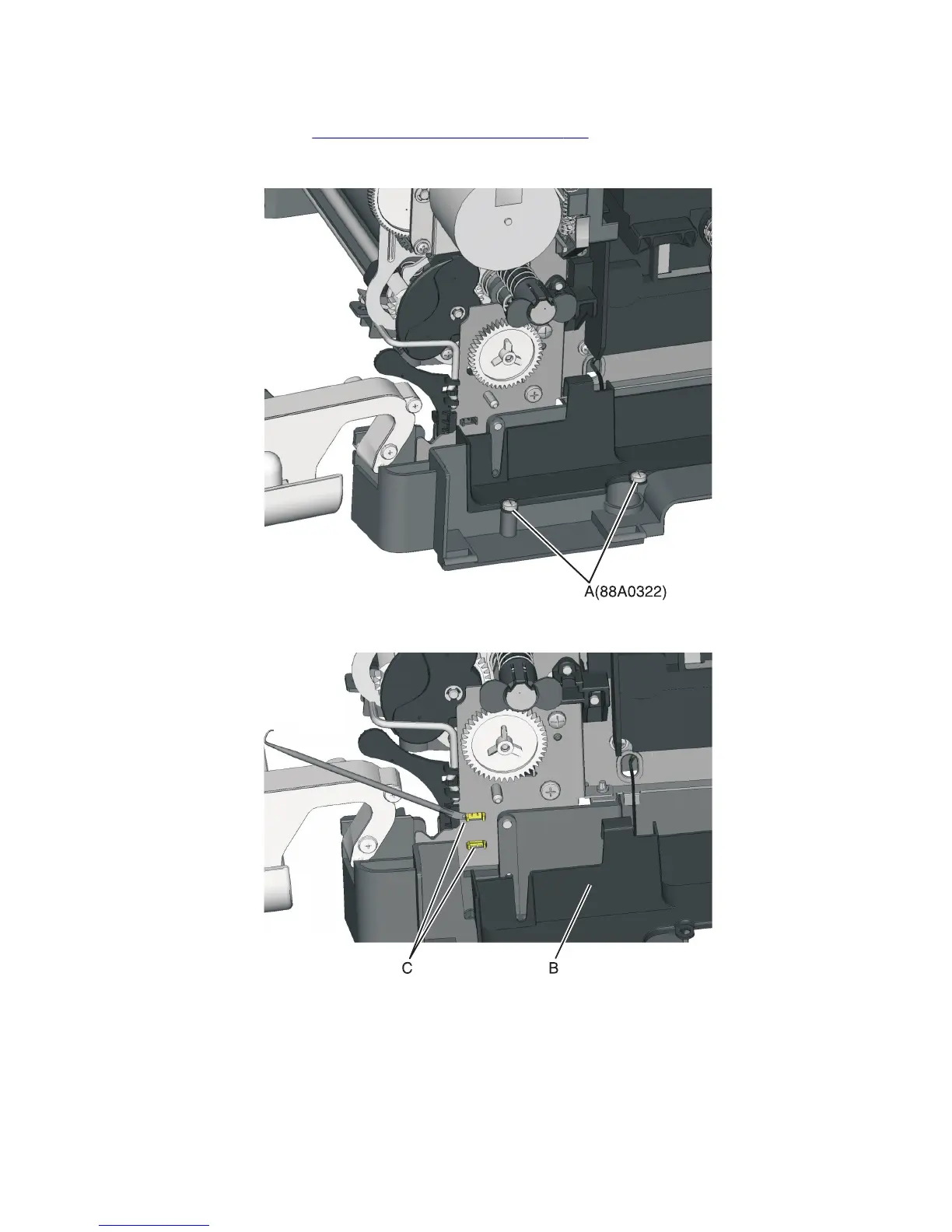

2 Remove the two screws (A) from the cable cover.

3 Pull the corner of the cable cover (B) away from the right side to access the two sensor posts (C).

5027

Repair information

284
