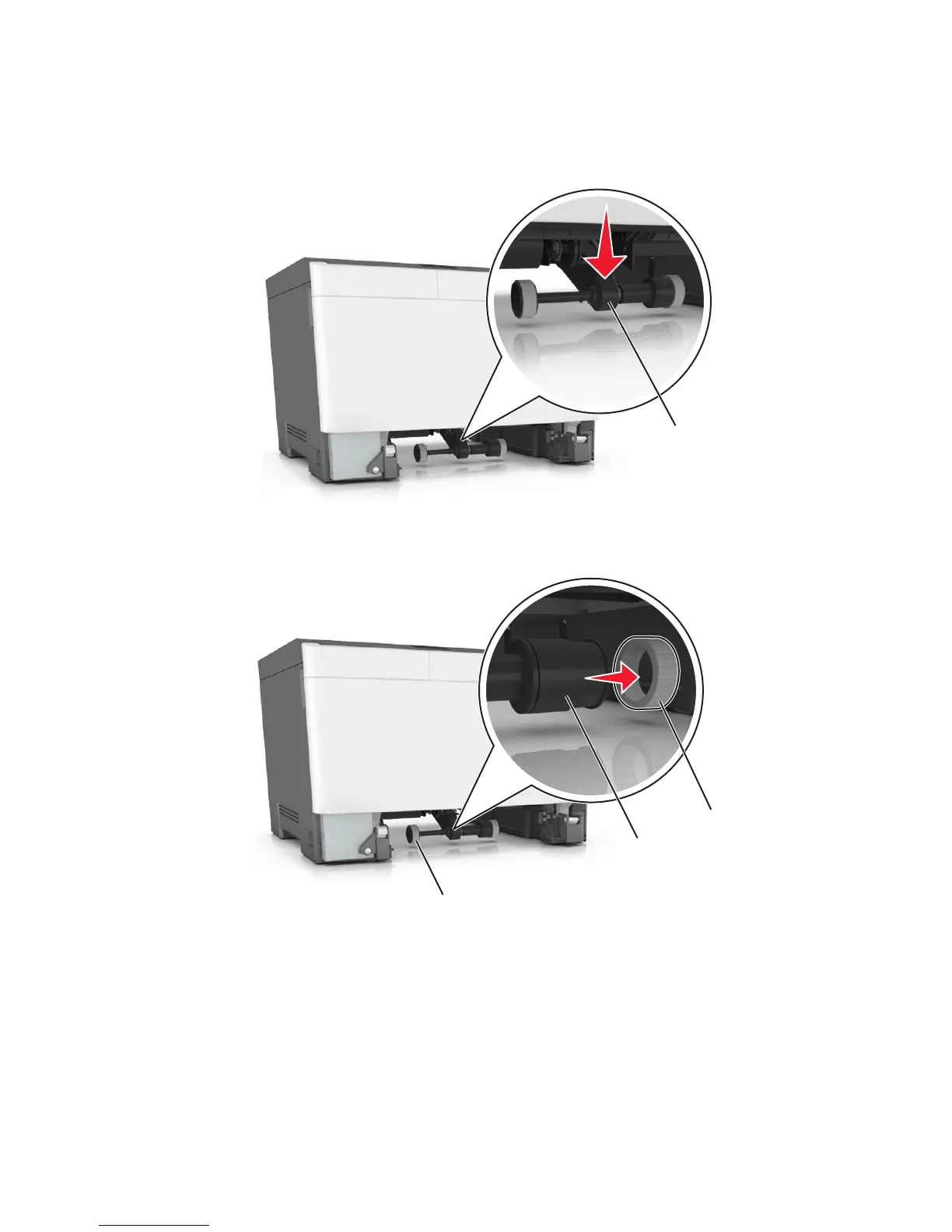

Pick tire removal

1 Remove the drawer tray assembly.

2 Lower the auto compensator mechanism (A).

3 Remove the rubber tires (B) from the pick roll assembly (C). Repeat for the other tire (D).

Installation note: Install the new rubber tire with its surface texture turning in the direction as shown.

5027

Repair information

303
