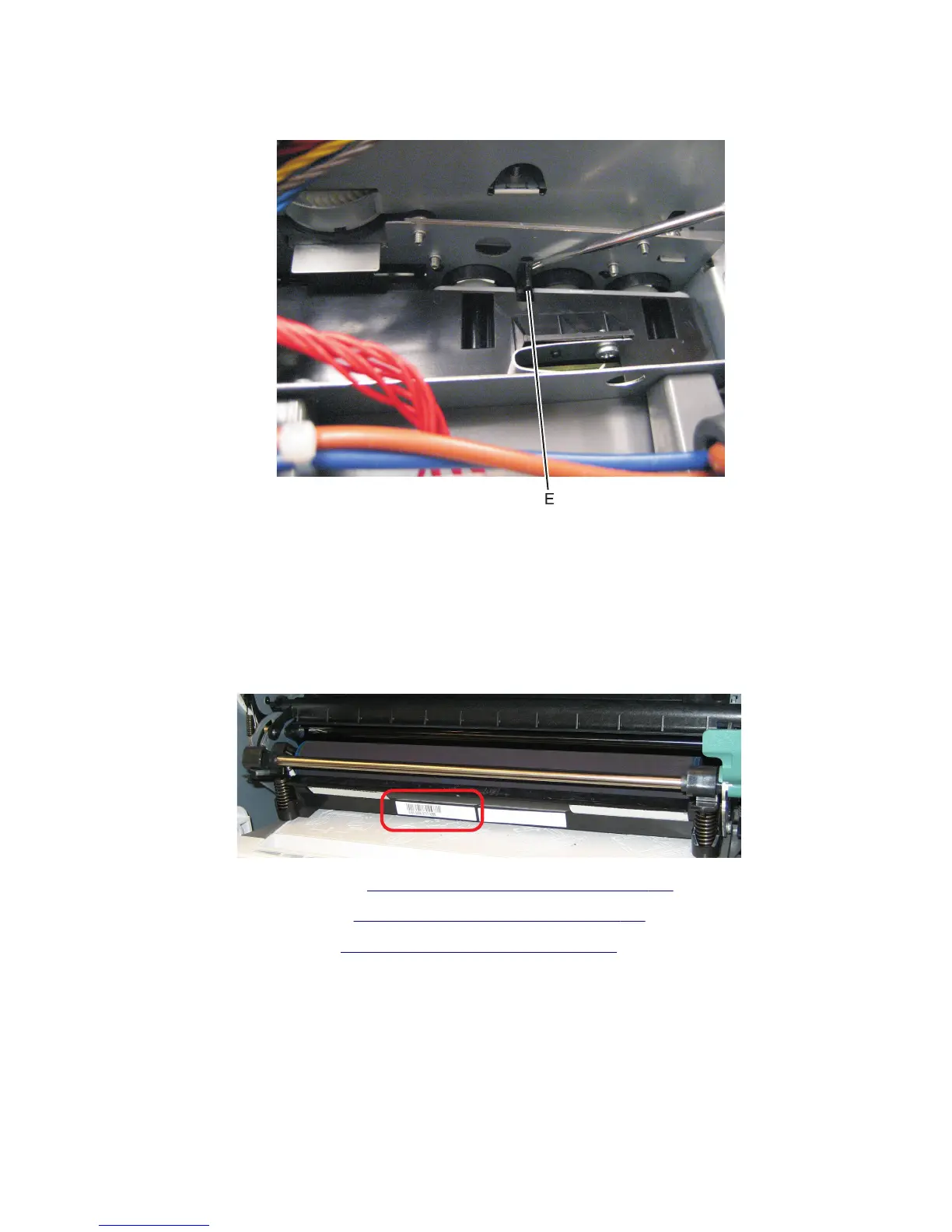

c Check the position of the card at the left side of the printer. The small vertical post (E) in the endcap has to be
positioned in the hole above it, as show below.
d Install the new cable making sure the connector to the board is locked into position.
Note: Reinstall the screw to hold the HVPS to the right side of the printer.
Image transfer unit (ITU) removal
1 Write down the number of the new ITU before installing it. You will need the 16-digit numeric value from the barcode
after the installation, and it is easier to see at this point.
2 Remove the right cover assembly. See “Right cover assembly removal” on page 232.
3 Remove the waste toner bottle. See “Waste toner bottle removal” on page 250.
4 Remove the imaging unit (IU). See “Imaging unit (IU) removal” on page 246.
5027
Repair information
243
