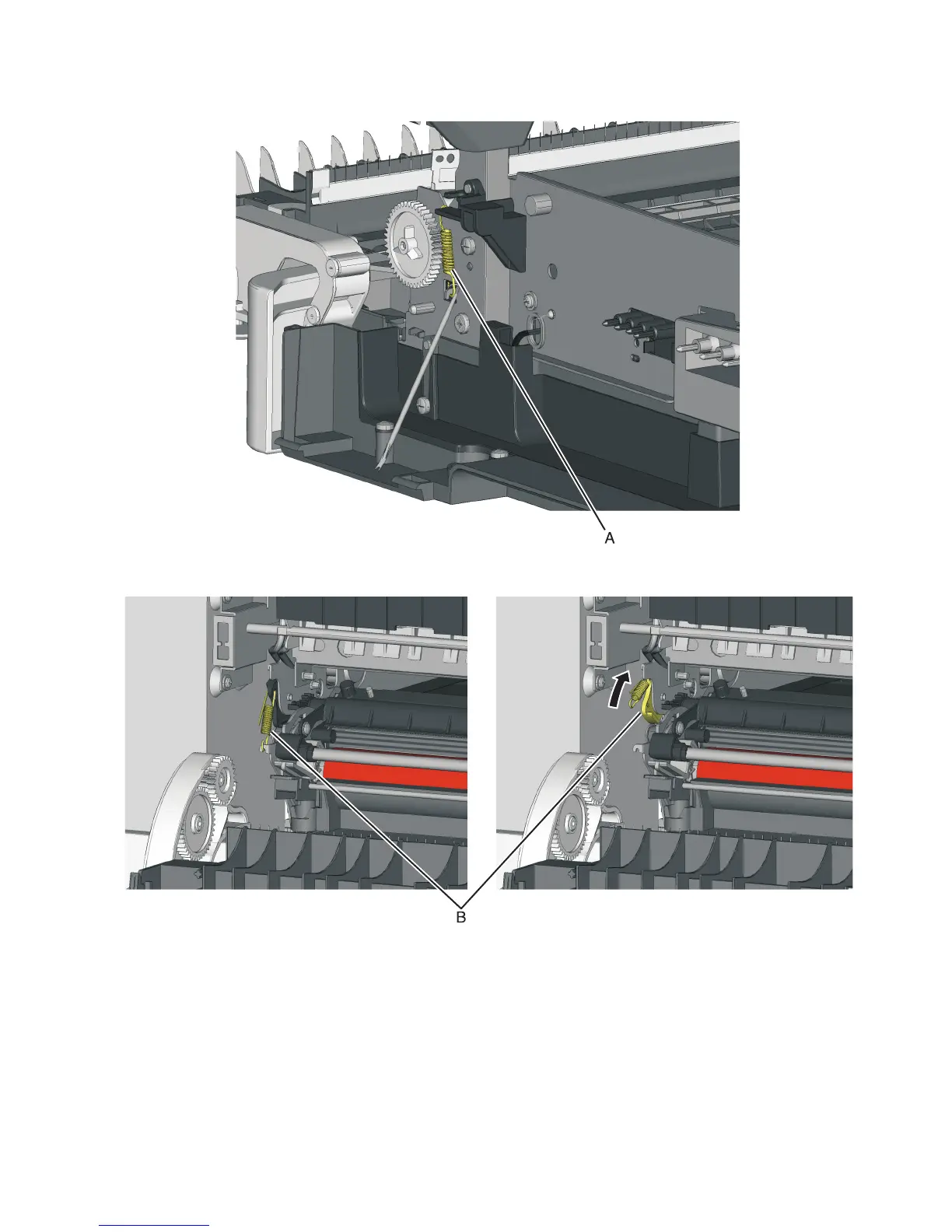

5 Disconnect the two springs (A, B) from the side frames, leaving the right one (A) attached to the ITU spring clamp.

6 Unhook the left spring (B), and the cam away from the ITU so the spring is held out of the ITU path.

5027

Repair information

244
