Lexmark CS310 - Options Removals; 650-Sheet Duo Drawer Tray Assembly Removal

Installation notes:
• When the printhead is replaced, perform the registration (black planes) and alignment (color planes). See
“REGISTRATION” on page 167and “Setting alignment for color” on page 169.
• Be sure to replace the toroid on the cable when you reinstall the printhead, and push the toriod between the
connector and the top frame so that the weight is not supported by the cable.
Options removals
• “650‑sheet duo drawer tray assembly removal” on page 300
• “650‑sheet duo drawer assembly removal” on page 301
• “Dust cover removal” on page 302
• “Pick tire removal” on page 303
650‑sheet duo drawer tray assembly removal

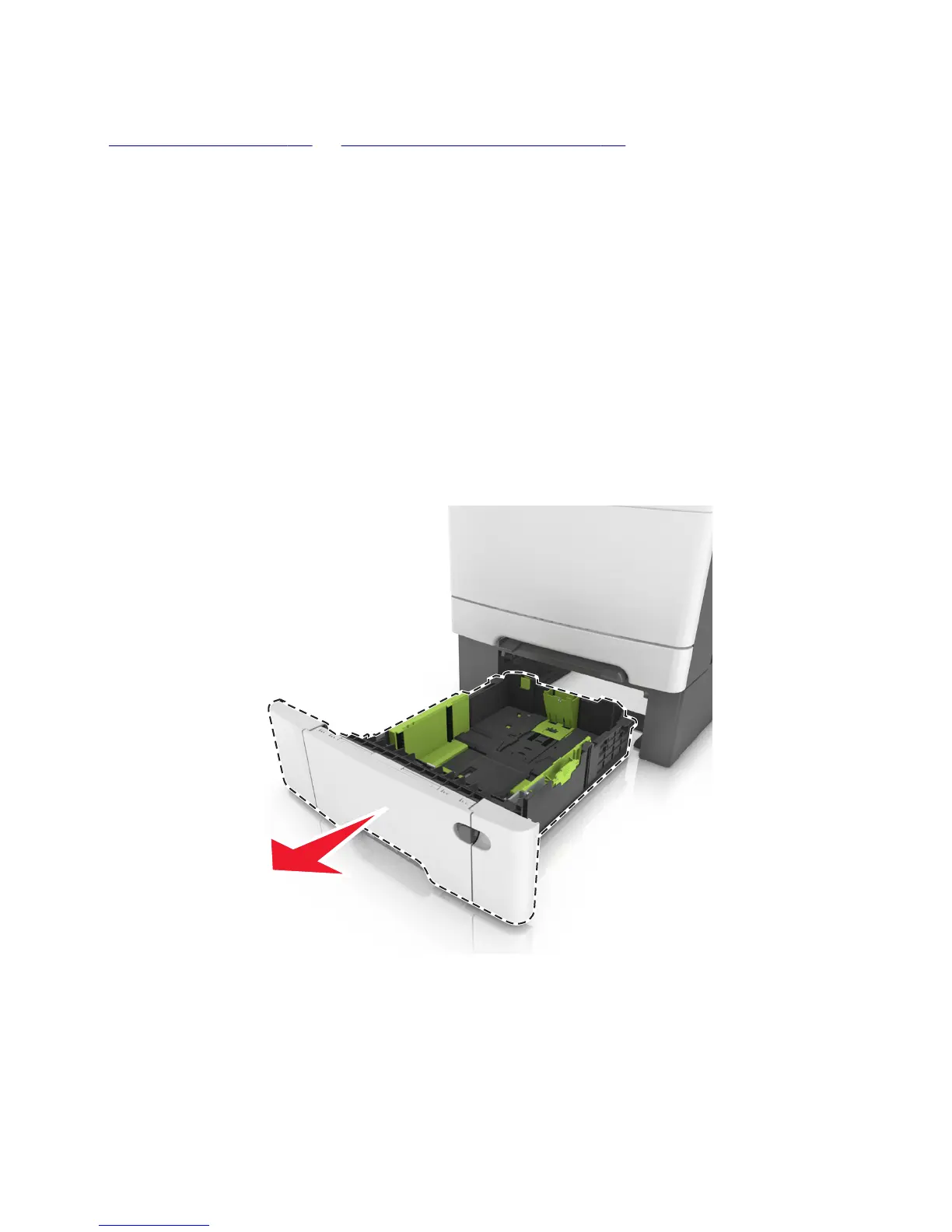

1 Pull out the drawer tray assembly.
2 Remove the tray assembly.
