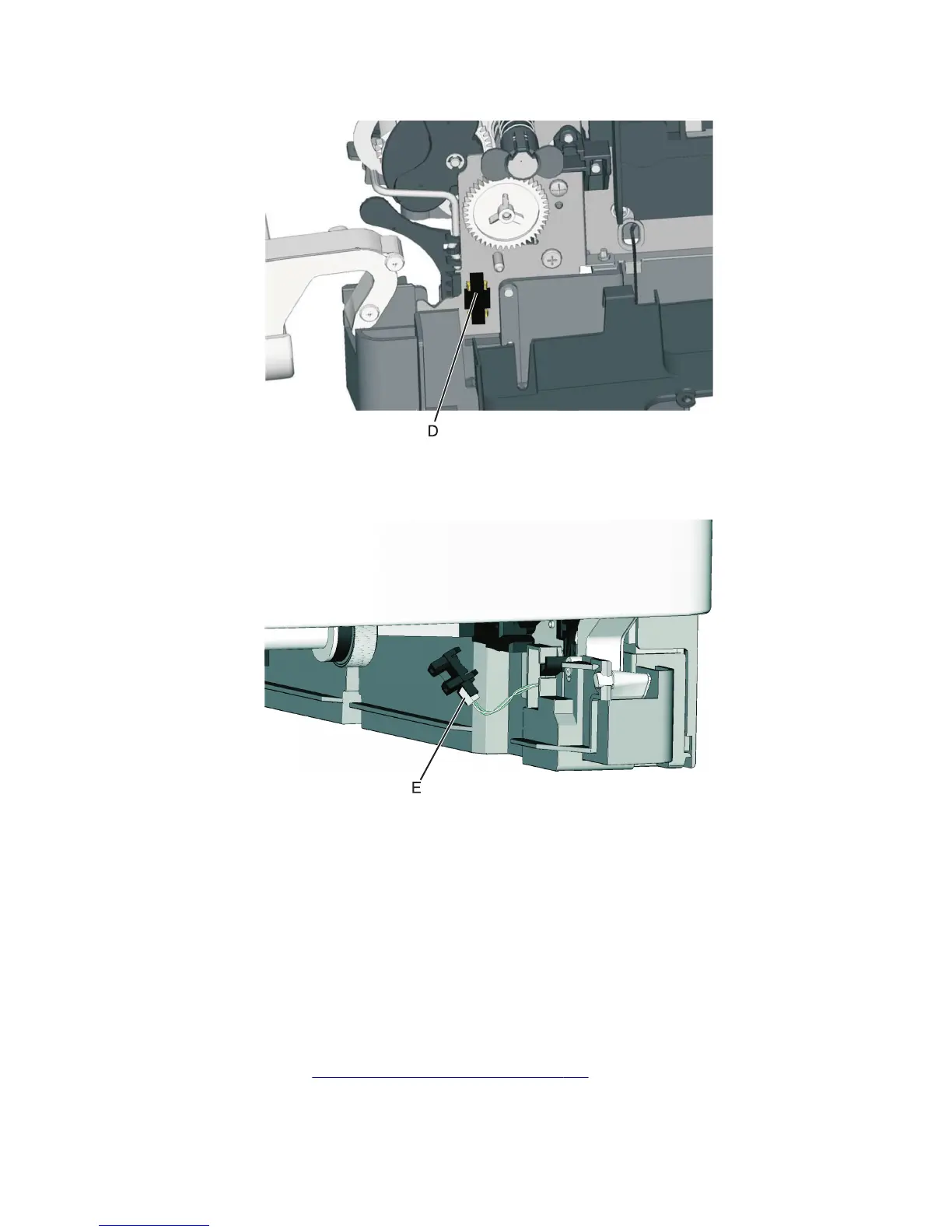

4 Remove the sensor plate (D).
5 Push in on the latches to disconnect the duplex sensor from the printer.
6 Disconnect the cable (E) from the duplex sensor.
Installation notes:
a Clean the contact surface where you removed the sensor retaining plate, or where you need to install the new
one.
b Install the new sensor.
Note: Make sure the clamps on the legs of the sensor latch to the metal frame.
c Remove the backing from the new plate, and place the plate on the surface between the sensor mounting lets.
Tray present sensor removal
1 Remove the media tray.
2 Remove the imaging unit. See “Imaging unit (IU) removal” on page 246.
5027
Repair information
285
