Lexmark CS310 User Manual

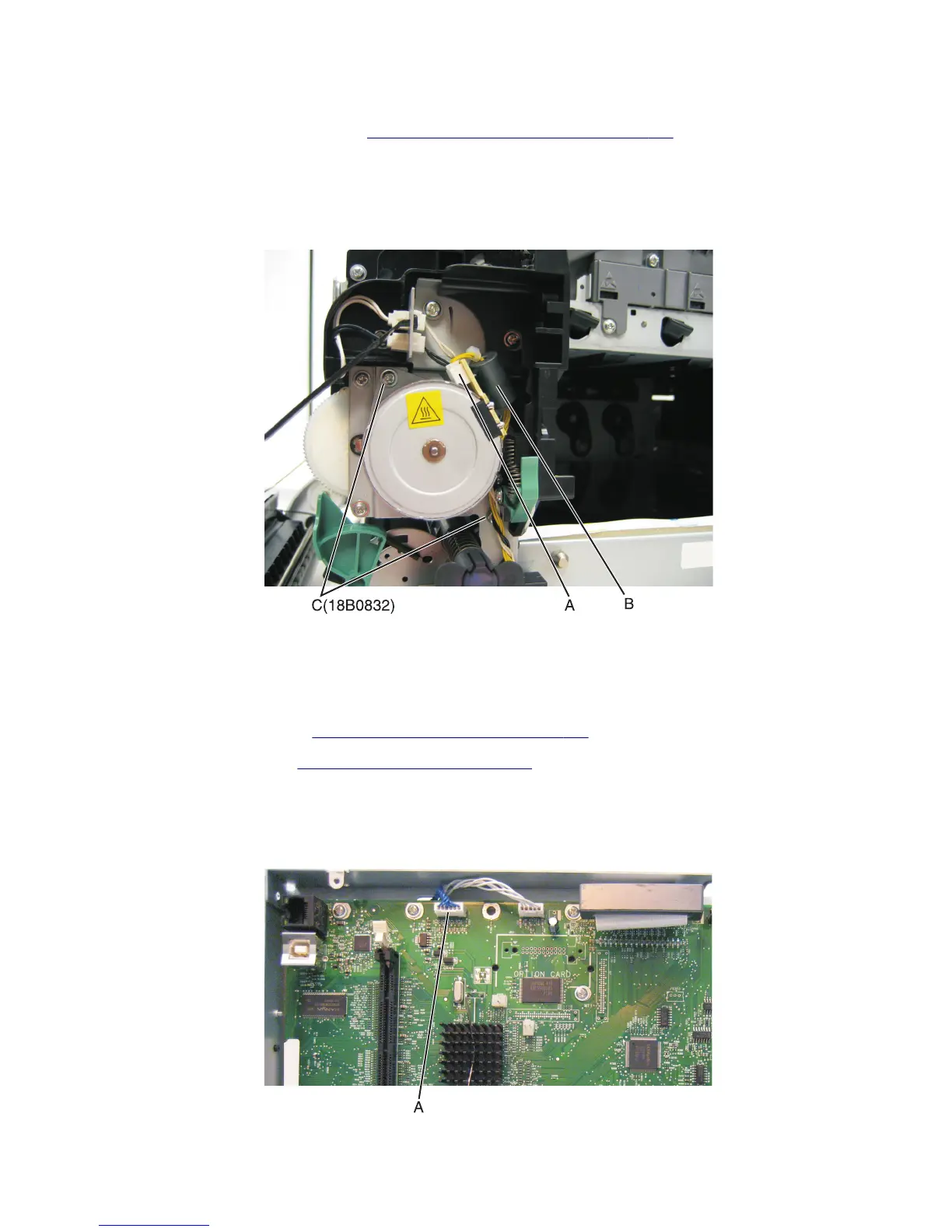

Fuser drive motor assembly removal
1 Remove the right cover assembly. See “Right cover assembly removal” on page 232.
2 Disconnect the cable (A) from the fuser drive motor assembly.
Note: If you remove the toroid (B) from the cable, be sure to return the toroid to the cable when reinstalling.
3 Remove the two screws (C).
4 Remove the fuser drive motor assembly.
Toner meter cycle (TMC) card removal
1 Remove the imaging unit. See “Imaging unit (IU) removal” on page 246.
2 Remove the rear cover. See “Rear cover removal” on page 290.
3 Disconnect the TMC cable from JCTM1 connector (A), and push the toner meter cycle card cable through the frame
opening.
Note: Pay close attention to the routing of the cable for reinstallation.
5027
Repair information
234

Lexmark CS310 Specifications

General

Print Technology	Color Laser
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 60, 000 pages
Standard Memory	256 MB
Processor Speed	800 MHz
Standard Input Capacity	250 sheets
Connectivity	USB 2.0, Ethernet
Standard Output Capacity	125 sheets
Recommended Monthly Page Volume	500 - 3, 000 pages
Operating Systems Supported	Windows, Linux
