Lexmark CS310 - High-Voltage Power Supply (HVPS) Removal

To Next Page

To Previous Page

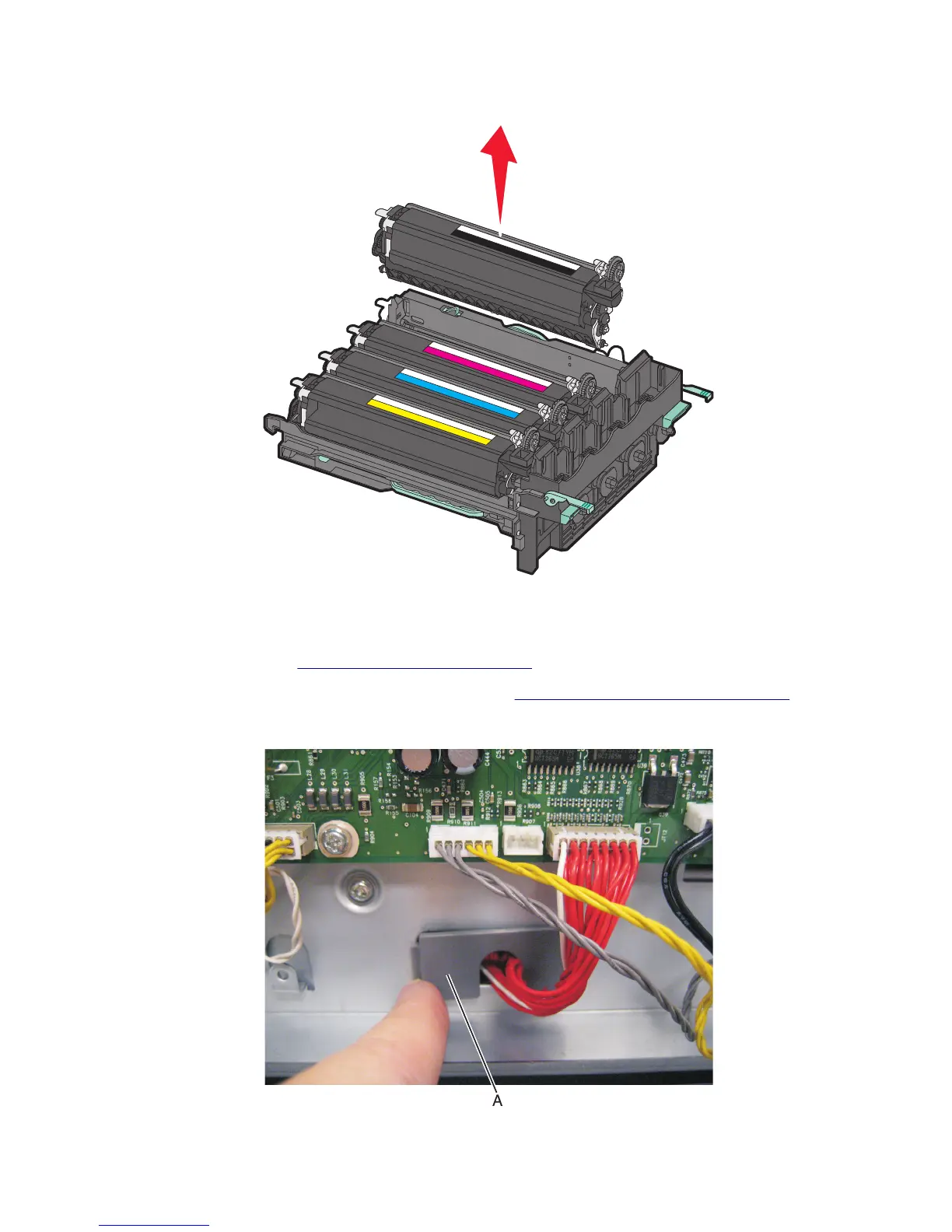

4 Remove the developer unit(s).

High‑voltage power supply (HVPS) removal

1 Remove the rear cover. See “Rear cover removal” on page 290.

2 For the CS510 model only, remove the controller board. See “Controller board removal” on page 291.

3 Remove the cable cover (A).

5027

Repair information

239
