Lexmark CS310 - Speaker Removal; Right Side Removals; Right Cover Assembly Removal

Speaker removal
1 Remove the left cover. See “Left cover assembly removal” on page 219.

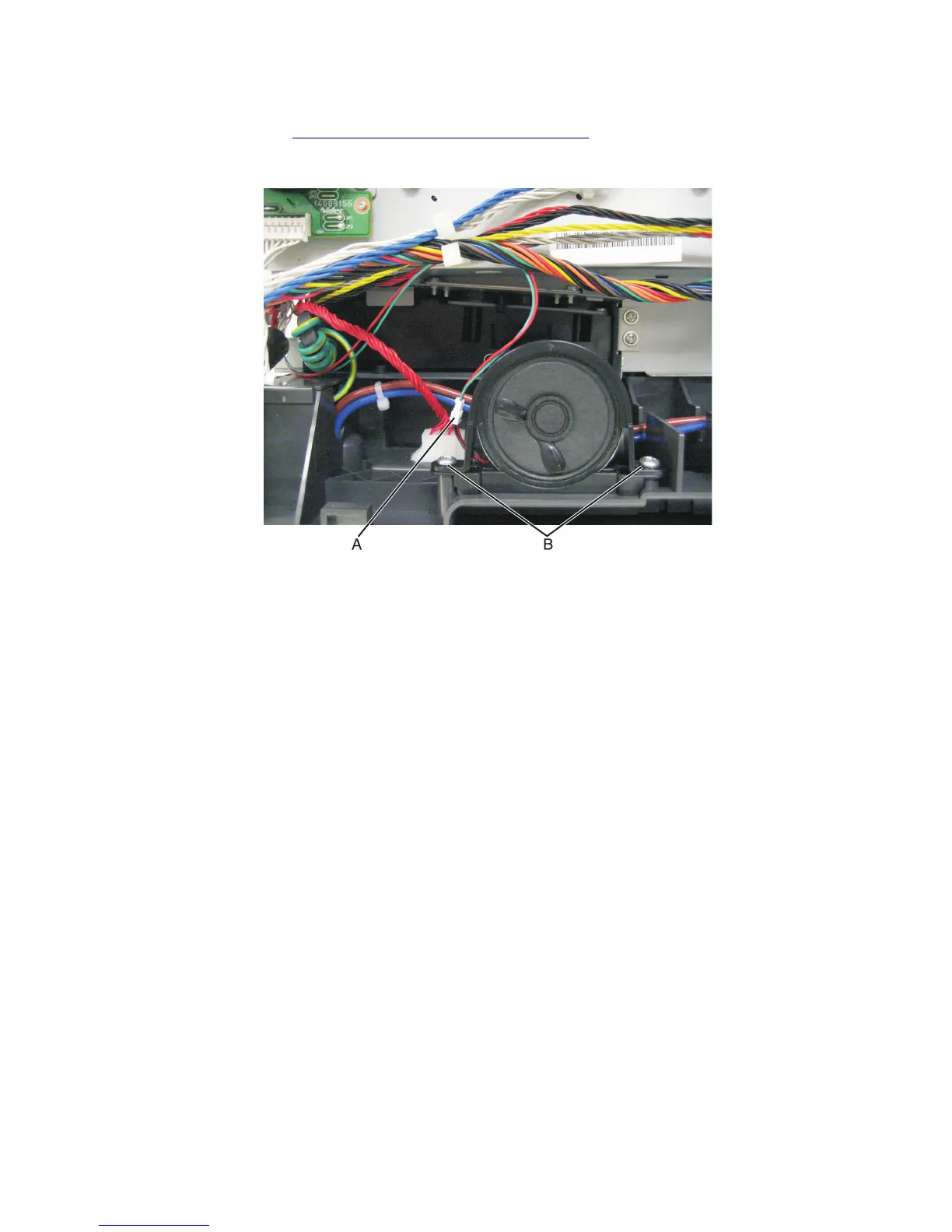

2 Disconnect the cable (A), and remove the two screws (B).
3 Remove the speaker.
Right side removals
Right cover assembly removal
1 Open the toner supply door.
2 Open the front door.
5027
Repair information
232
