Right output bin deflector removal
1 Open the front cover.

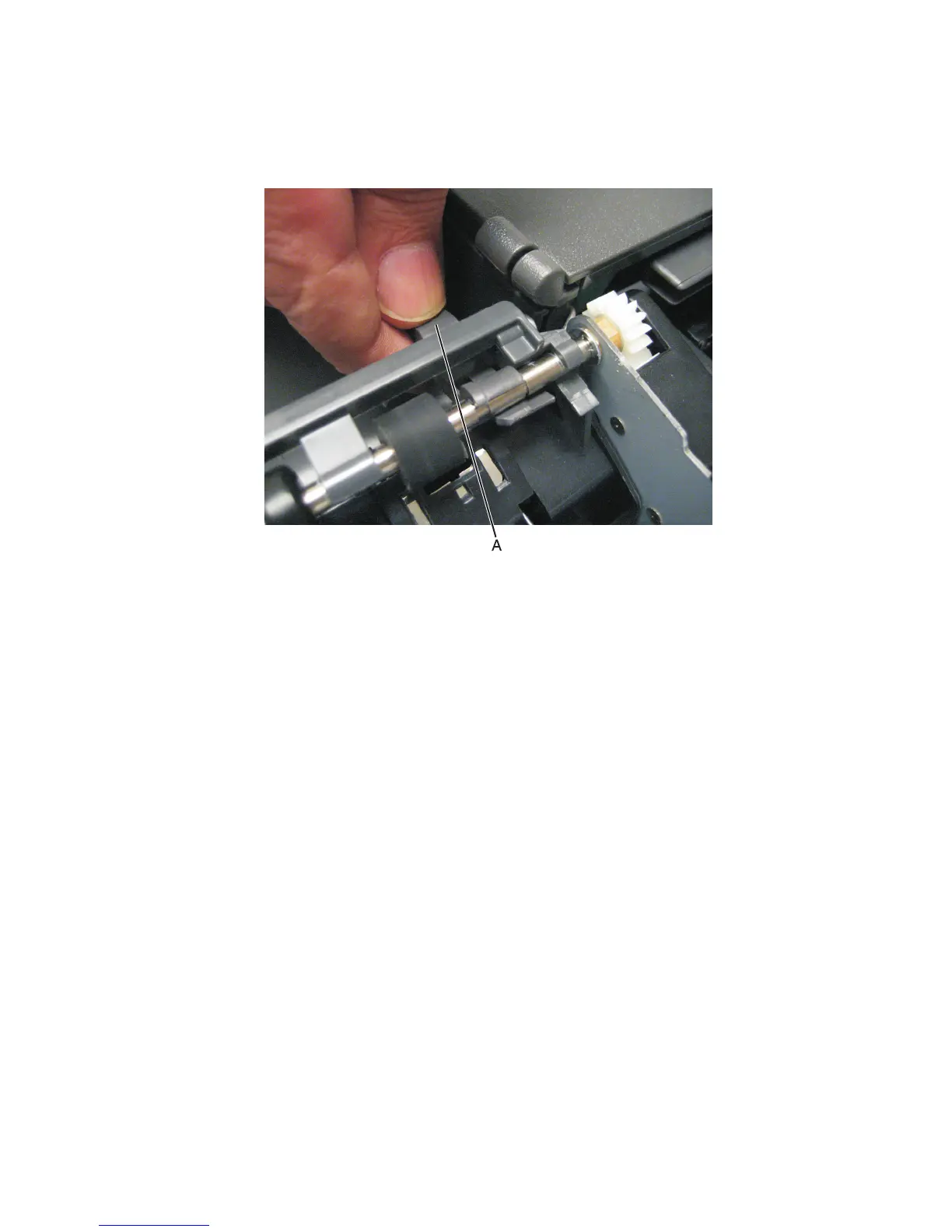

2 Pull up on the right output bin deflector (A), and remove.
Bottom removals
Pick tires removal
Note: You will need to have a soft, padded work surface for this removal.
Warning—Potential Damage: Remove only the rubber tires and not the paper pick tire assembly to avoid losing
small parts.
Note: The paper pick tires for the standard media tray are located in the base printer. There are also tires in the
optional 650-sheet Duo Drawer/MP feeder and the optional 550-sheet drawer. If you have one or both of these
additional options, and you are having problems with media picking, replace these tires also. Always replace the
paper pick tires in pairs. The tires come in a package of two.
1 Remove the media tray.
2 Lower the paper pick motor drive assembly.
5027
Repair information
271
