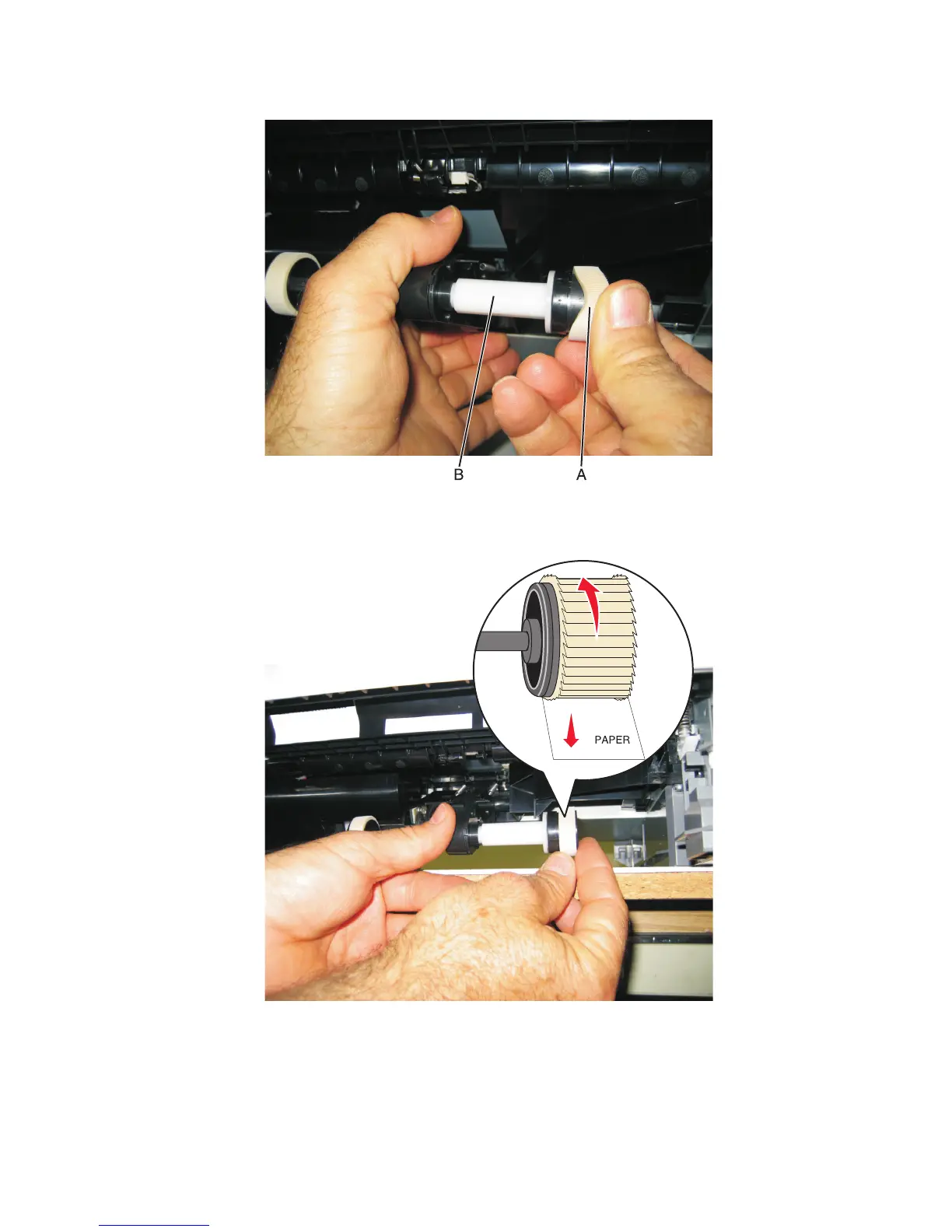

3 Remove the rubber tire (A) from the pick roll assembly (B). Repeat for the other tire.

Installation note:

Install the new rubber tires with the surface texture turning in the direction as shown below.

Note: Feel each rubber surface to verify it turns properly in the direction shown. The smoother surface pushes

the paper toward the front of the printer.

5027

Repair information

272
