Lexmark CS310 - Fuser Exit Sensor Removal

Fuser exit sensor removal
1 Remove the right cover assembly. See “Right cover assembly removal” on page 232.
2 Remove the bin-full/narrow media sensor flag. See “Bin‑full/narrow media sensor flag removal” on page 231.

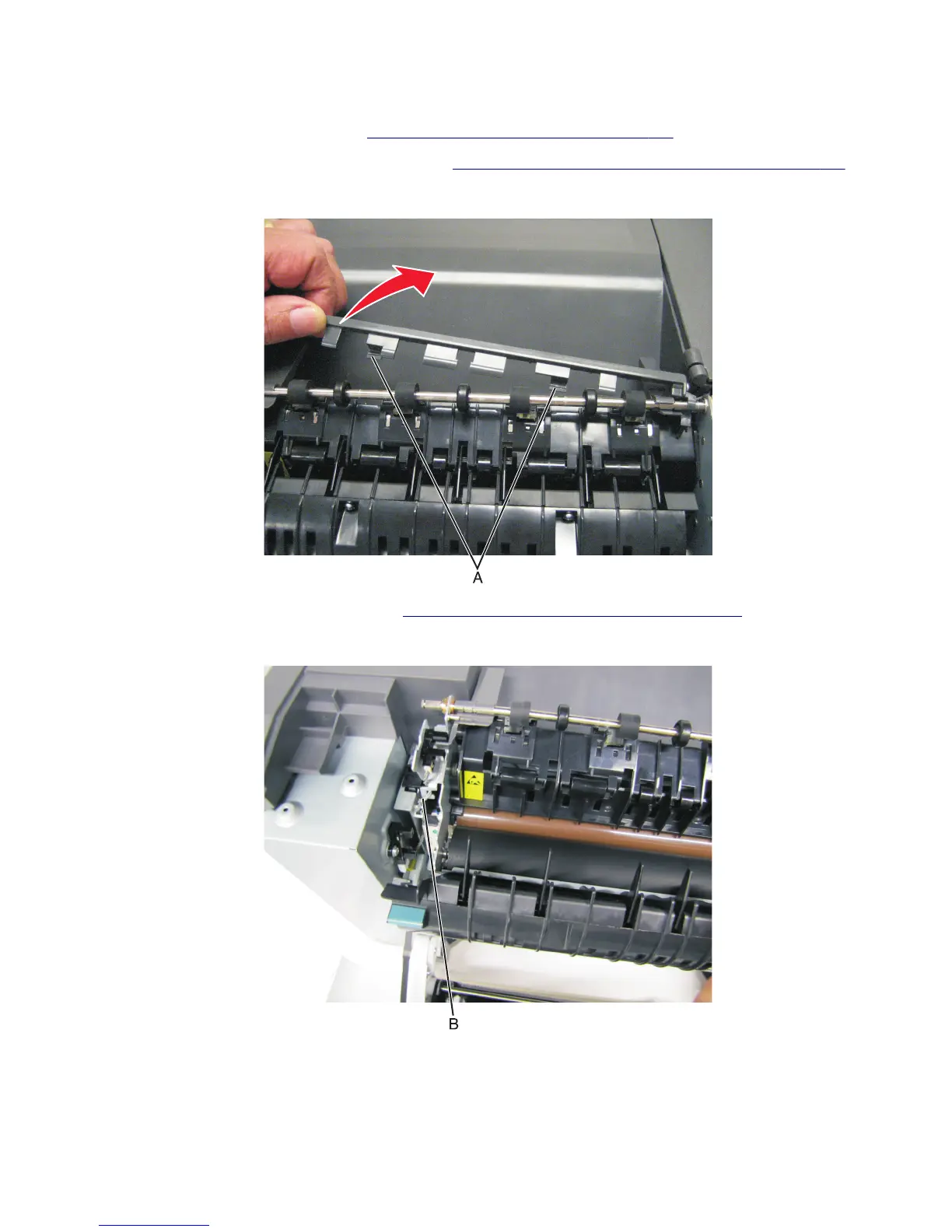

3 Press to unsnap the tabs (A), and gently rotate the exit deflector to remove.
4 Remove the right out put bin deflector. See “Right output bin deflector removal” on page 271.
5 Disconnect the cable (B) from the bin‑full/narrow media sensor, and unroute the cable from its retainer.
