Waste toner bottle contact block removal

Note: The waste toner bottle is not a FRU.

1 Remove the waste toner bottle. See “Waste toner bottle removal” on page 250.

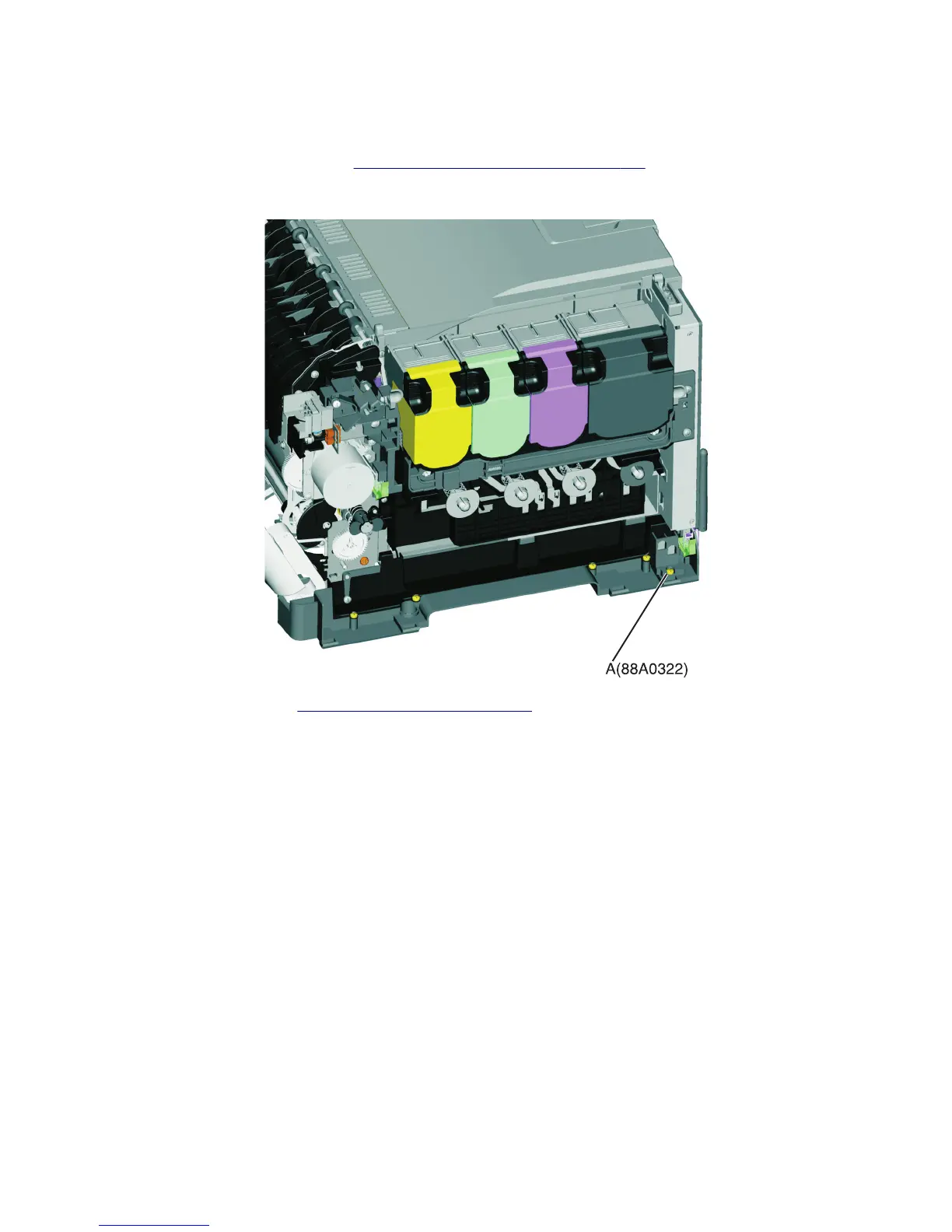

2 Remove the screw (A) from the back of the waste toner bottle block.

3 Remove the rear cover. See “Rear cover removal” on page 290.

5027

Repair information

251
