Right margin -50 to +50
Each increment corresponds to an approximate
shift of 4 pixels at 600 dpi.
The default is 0.
A positive change moves the image to the left,
and a negative change moves the image to the
right.
Skew -100 to +100
Each increment corresponds to 1/1200 of an
inch.
The default is 0.
A positive value causes the left end of the scan
line to move down the page. A negative value
causes the left end of the scan line to move up
the page. The right end stays fixed. There is no
compression or expansion of the image.
6 Print another copy of the Quick Test to verify your changes.
7 Continue changing the settings by repeating steps 3 through 5.
To exit Registration, press Back or Stop.
Skew
One printhead houses the four color planes. The black plane is aligned to the printer, and the other color planes are
internally aligned to black. Electronic alignment fine tunes the alignment of the color planes to the black plane once
the printhead is installed. See
“Setting alignment for color” on page 169 for instructions on setting printhead
alignment. This must be performed before color skew adjustment is attempted. The following illustration shows proper

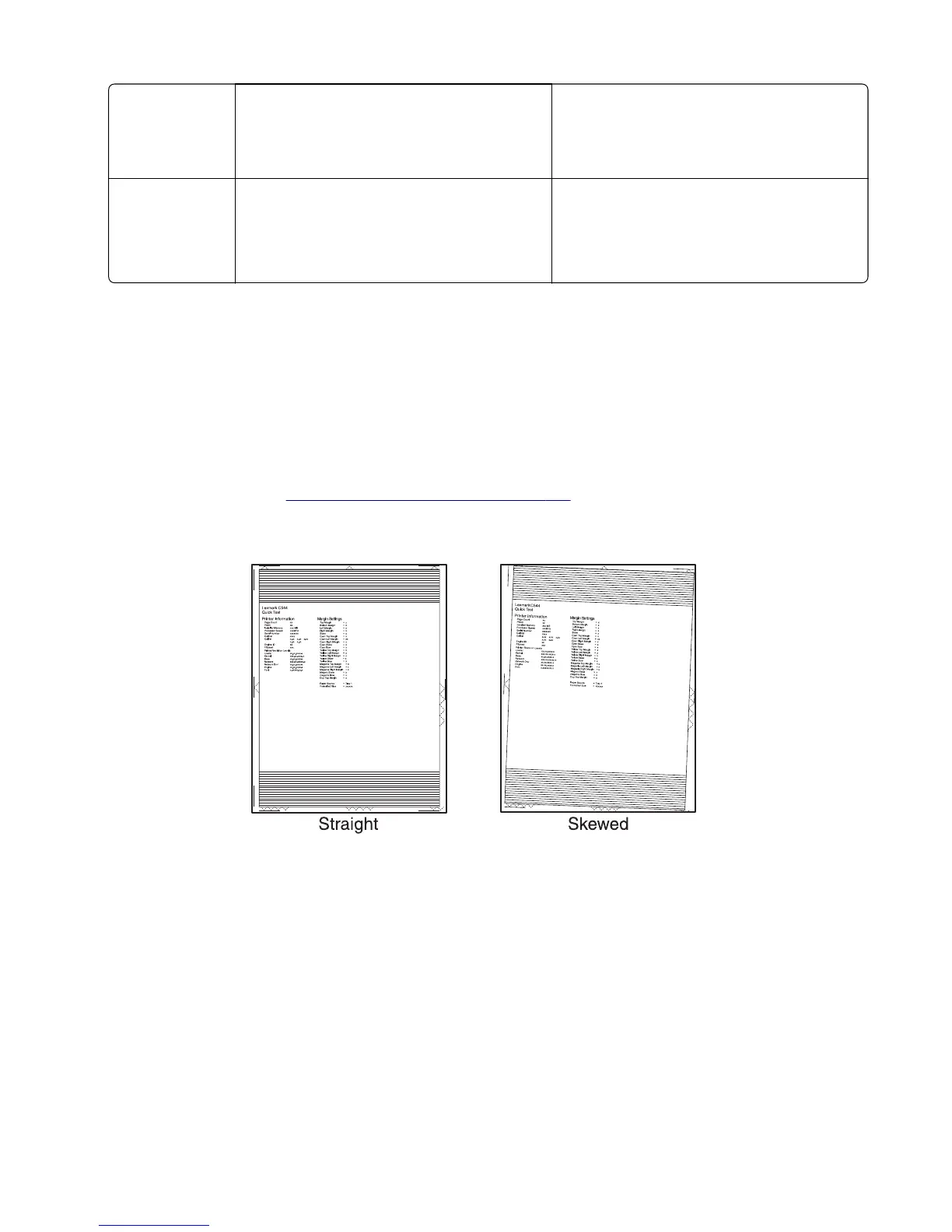

alignment versus skewed alignment.
Quick Test
The Quick Test contains the following information:
• Print registration settings
• Alignment diamonds at the left, right, top, and bottom
• Horizontal lines to check for skew
• General printer information, including current page count, installed memory, serial number, and code level
