Rear side removals

Rear cover removal

Note: The rear cover is not a field replaceable unit (FRU).

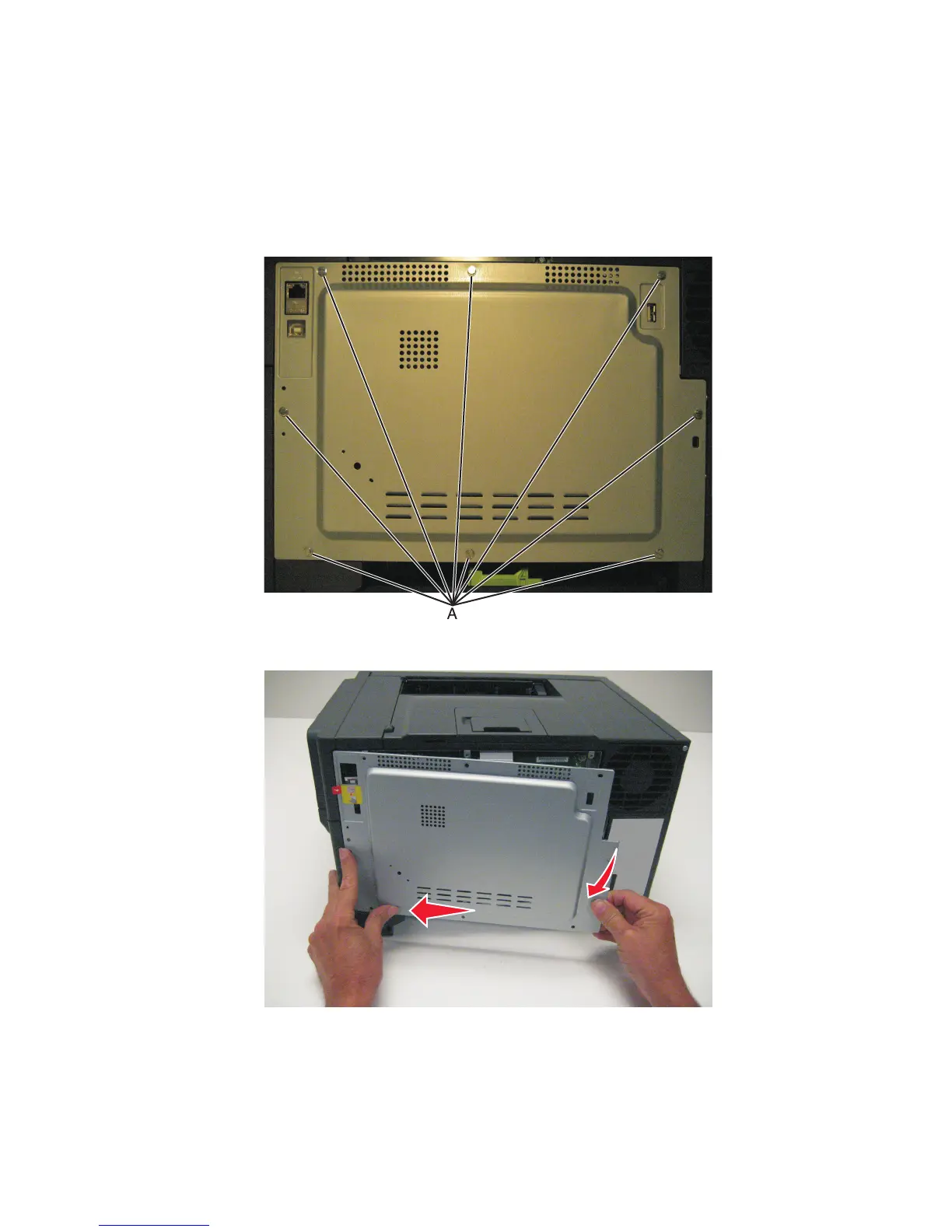

1 Remove the eight screws (A).

2 Swing the side of the cover out, and slide to the left to remove.

3 Remove the rear cover.

Installation note: When installing the rear cover, be sure that the bracket (B) is positioned behind the ear (C).

5027

Repair information

290
