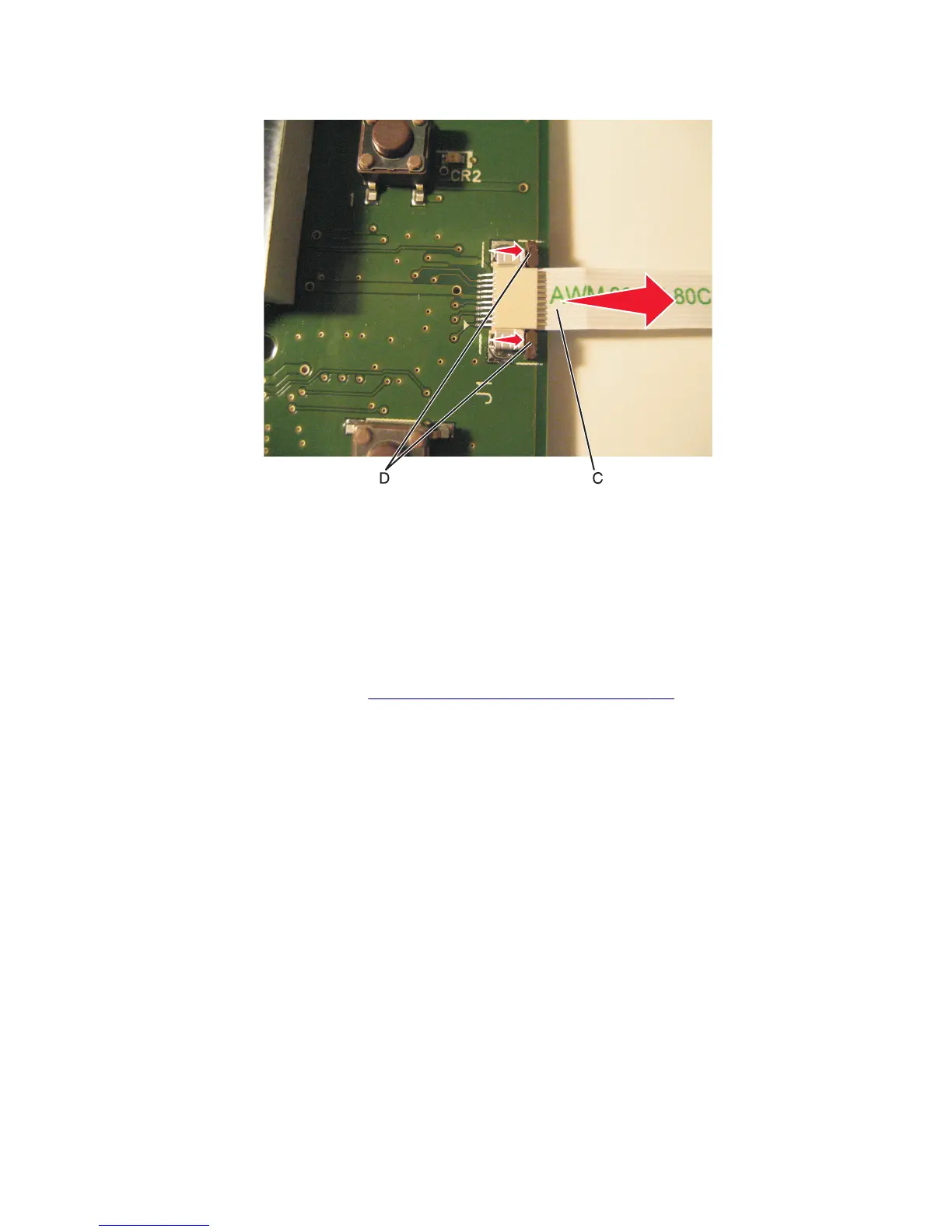

5 Slide the lever (D) forward, and disconnect the operator panel cable (C) from the operator panel.
Operator panel removal (for CS410 models only)
Installation warning: Replace one of the following components, and perform a POR before replacing a second
component. Never replace both of the components without performing a POR after installing each one, or the
printer may be rendered inoperable:
• UICC card and display
• Controller board
1 Remove the operator panel bezel. See “Operator panel bezel removal” on page 254.
2 Open the front cover.
5027
Repair information
256
