EP drive assembly removal
1 Remove the left cover assembly. See “Left cover assembly removal” on page 219.
2 Remove the image transfer unit. See “Image transfer unit (ITU) removal” on page 243.

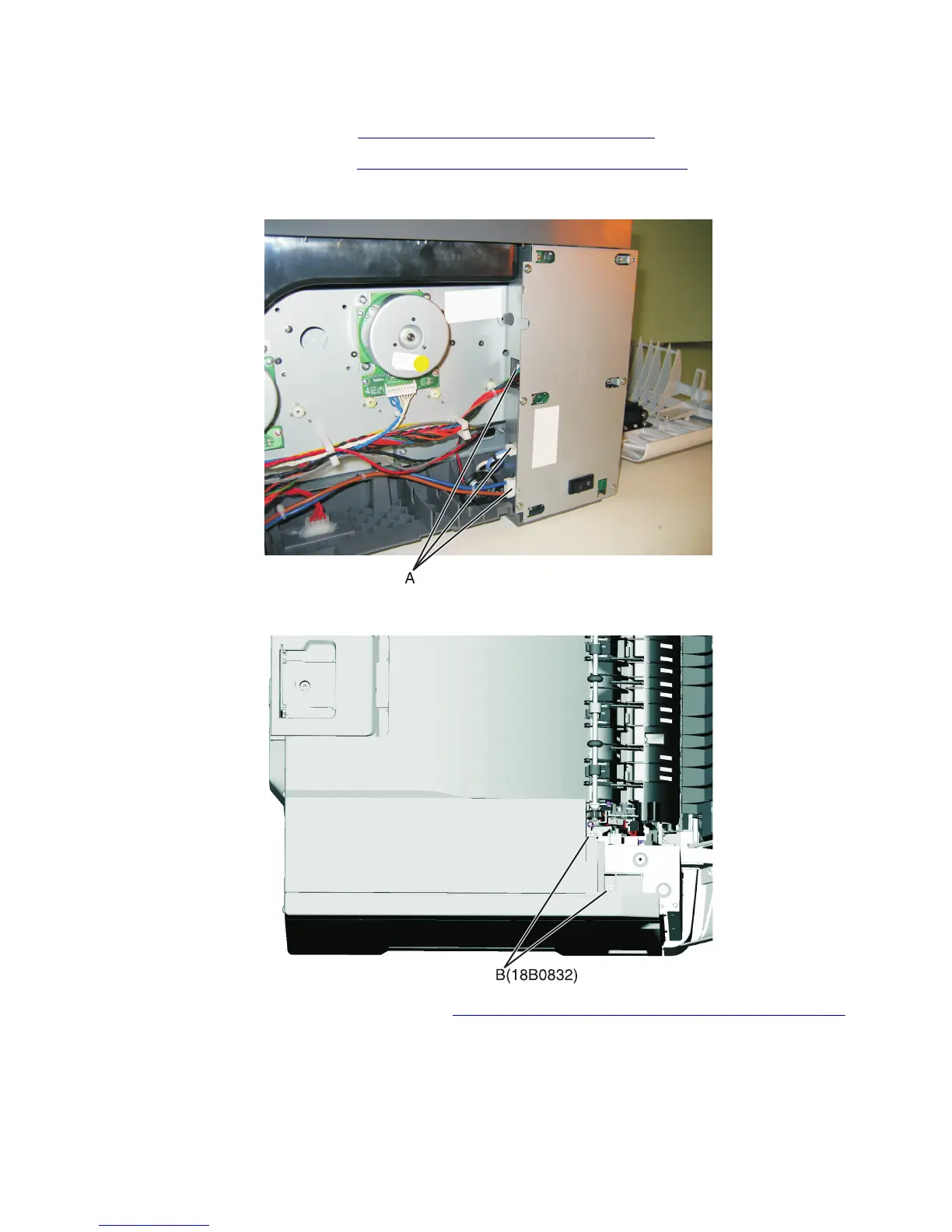

3 Disconnect the three cables (A) from the LVPS.
4 Remove the two top screws (B) holding the top cover to the LVPS shield.
5 Remove the bin-full/narrow media sensor flag. See “Bin‑full/narrow media sensor flag removal” on page 231.
