Bin‑full/narrow media sensor flag removal

Note: The exit deflector and bin‑full/narrow media sensor flag are in the same FRU and should be replaced together.

1 Open the front cover.

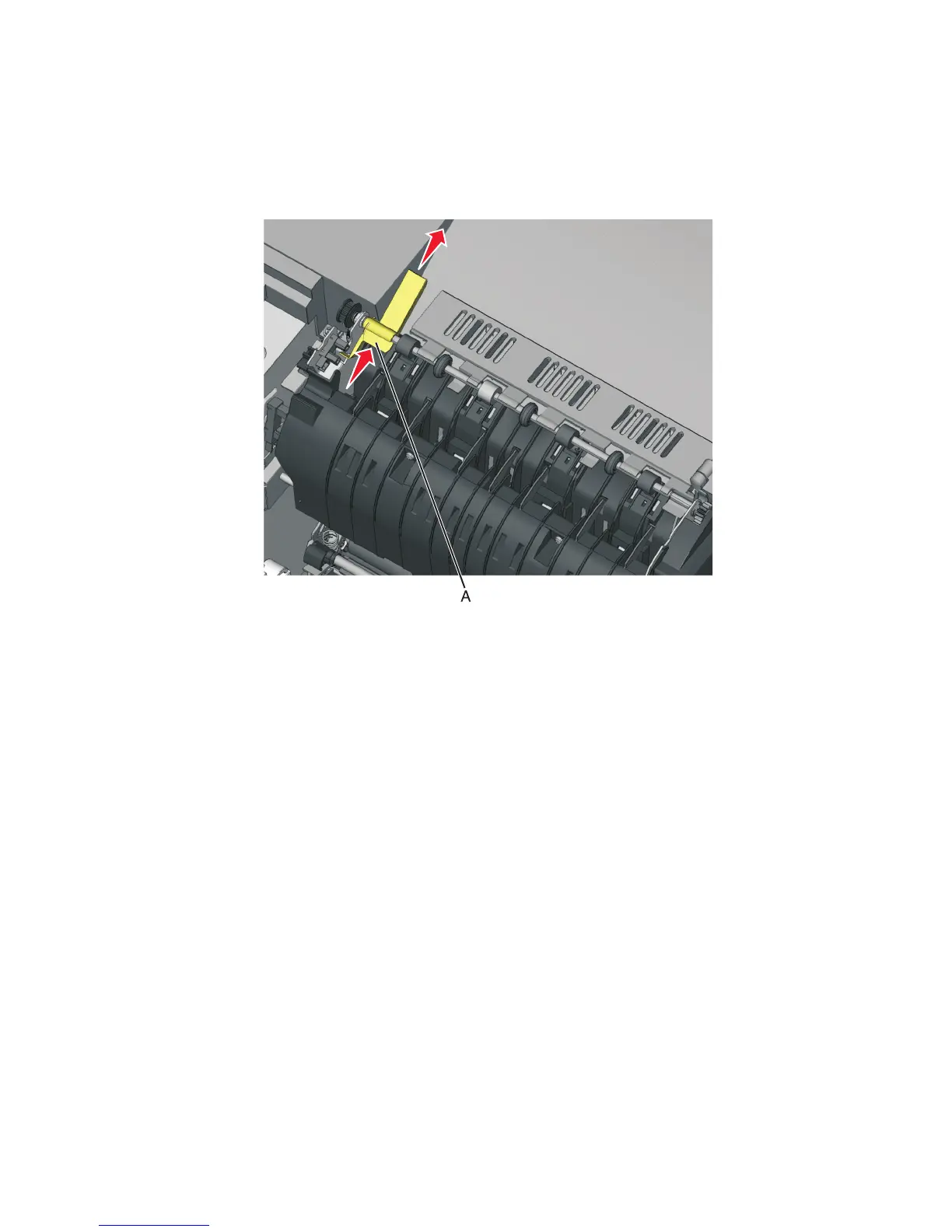

2 Press upward on the tab (A) to unsnap the bin‑full/narrow media sensor flag, and remove the flag.

Note: Be careful to not dislodge the sensor.

5027

Repair information

231
