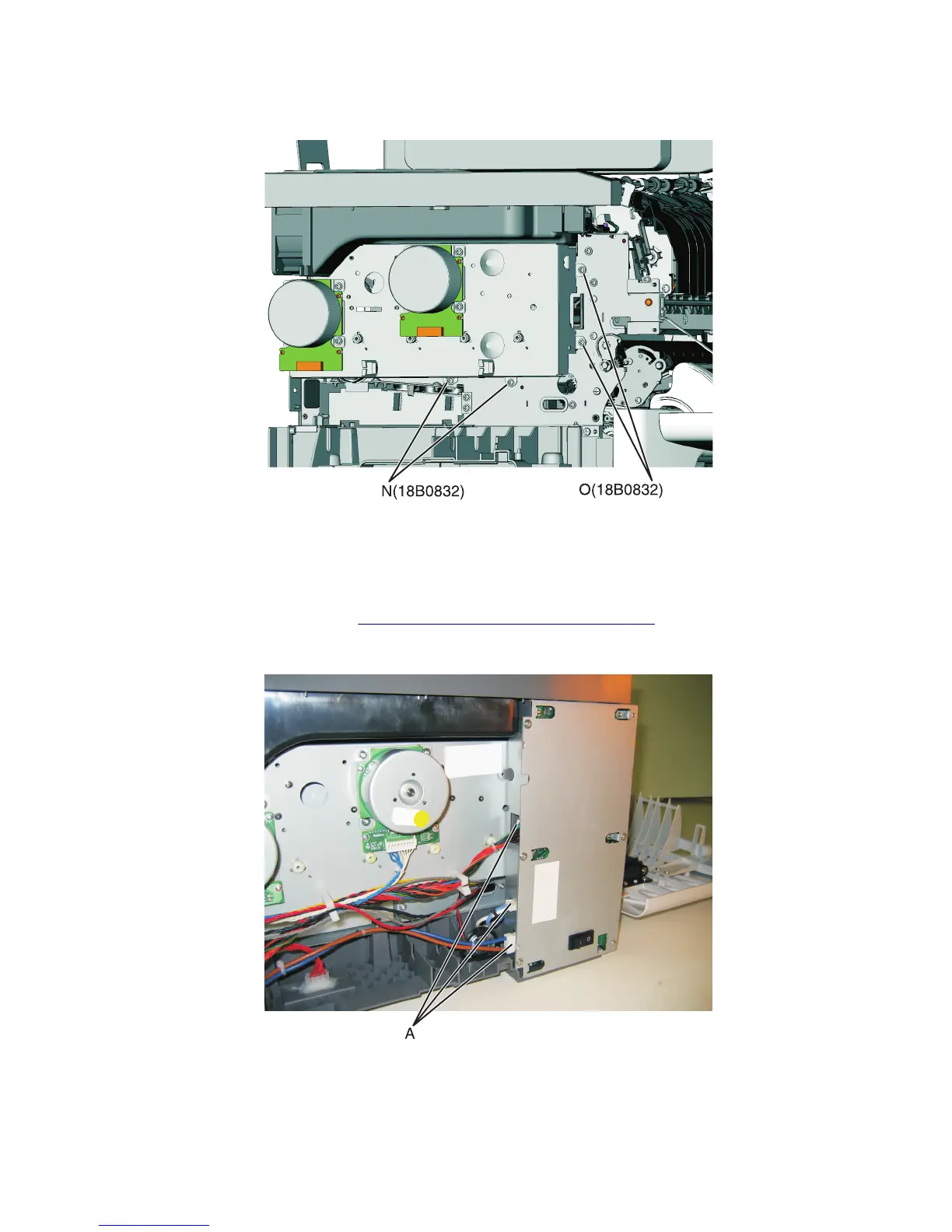

18 Remove the two screws (N) from below the EP drive assembly, and the two screws (O) from the right of the EP drive

assembly.

19 Lift the EP drive assembly, and remove.

Low‑voltage power supply (LVPS) assembly removal

1 Remove the left cover assembly. See “Left cover assembly removal” on page 219.

2 Press in on the latches to disconnect the three cables (A) from the LVPS.

5027

Repair information

226
