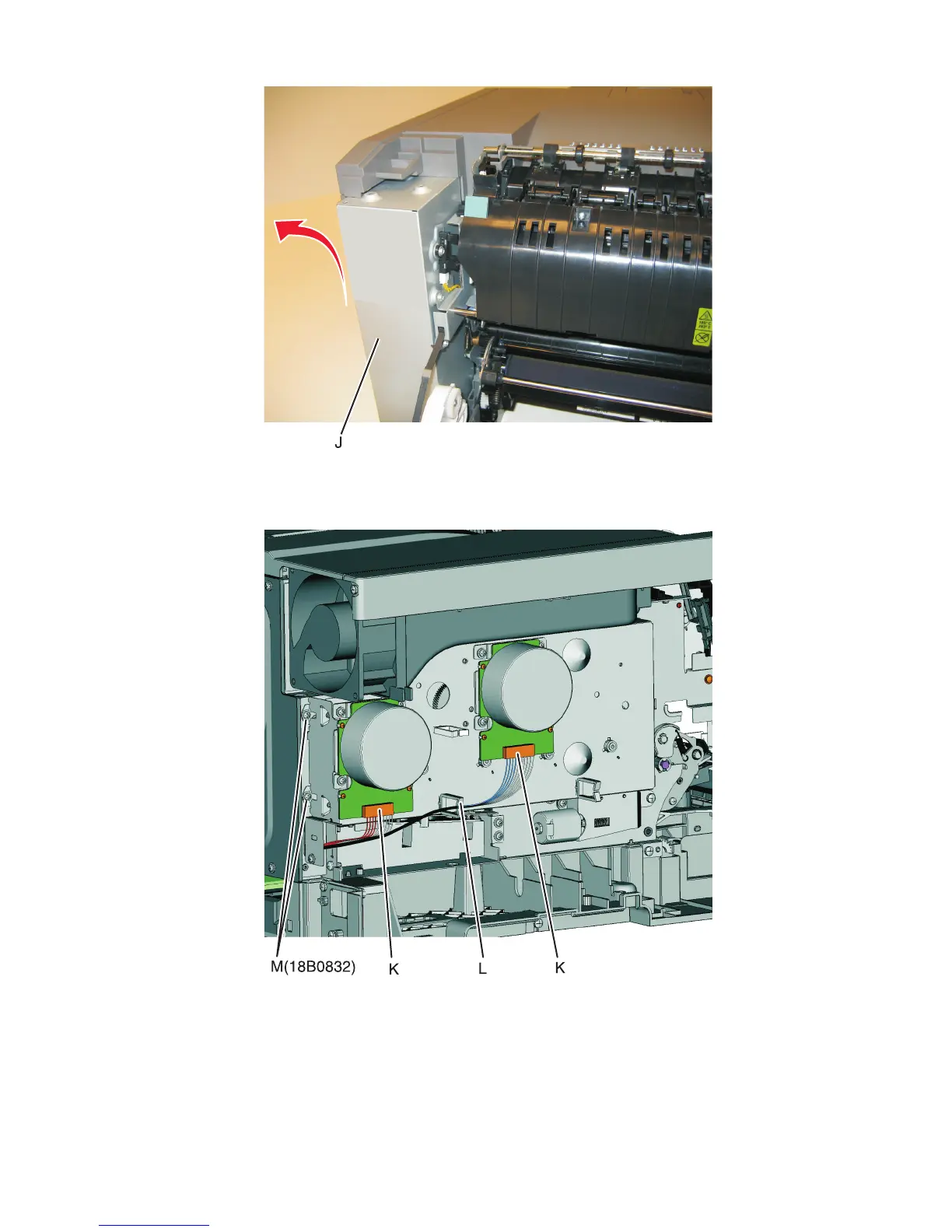

16 Disconnect the cables from the motors (K) and the two cables from the retainer (L).

17 Remove the two screws (M) from the rear, and unroute all of the cables.
