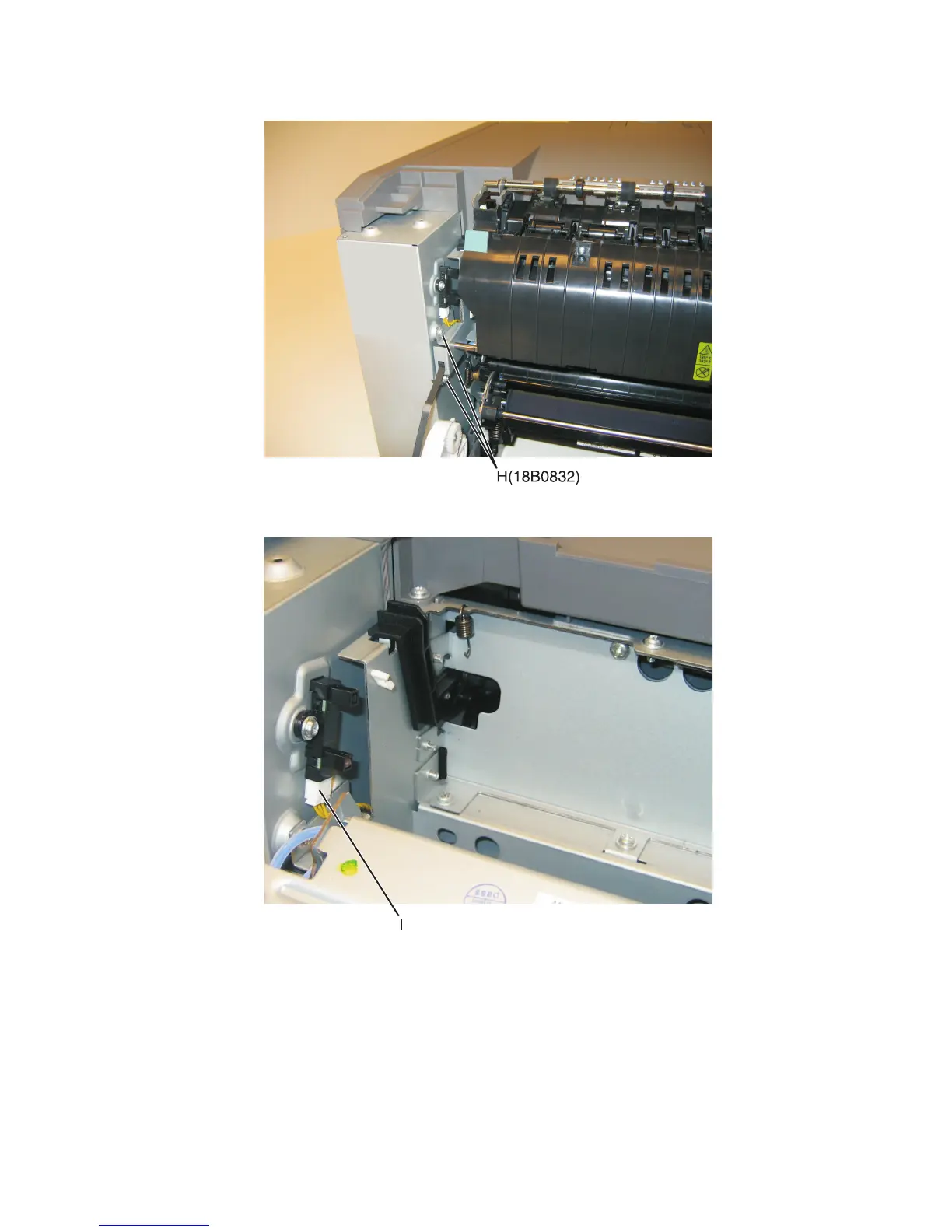

13 Remove the two screws (H).

14 Disconnect the fuser exit cable (I).

15 Lift the front left corner of the top cover, and tilt the LVPS cage (J) to remove. There are two posts at the bottom

of the cage on the left side that need to be disengaged.

Note: Be careful to not damage the fuser exit sensor as it remains in the cage.

5027

Repair information

224
