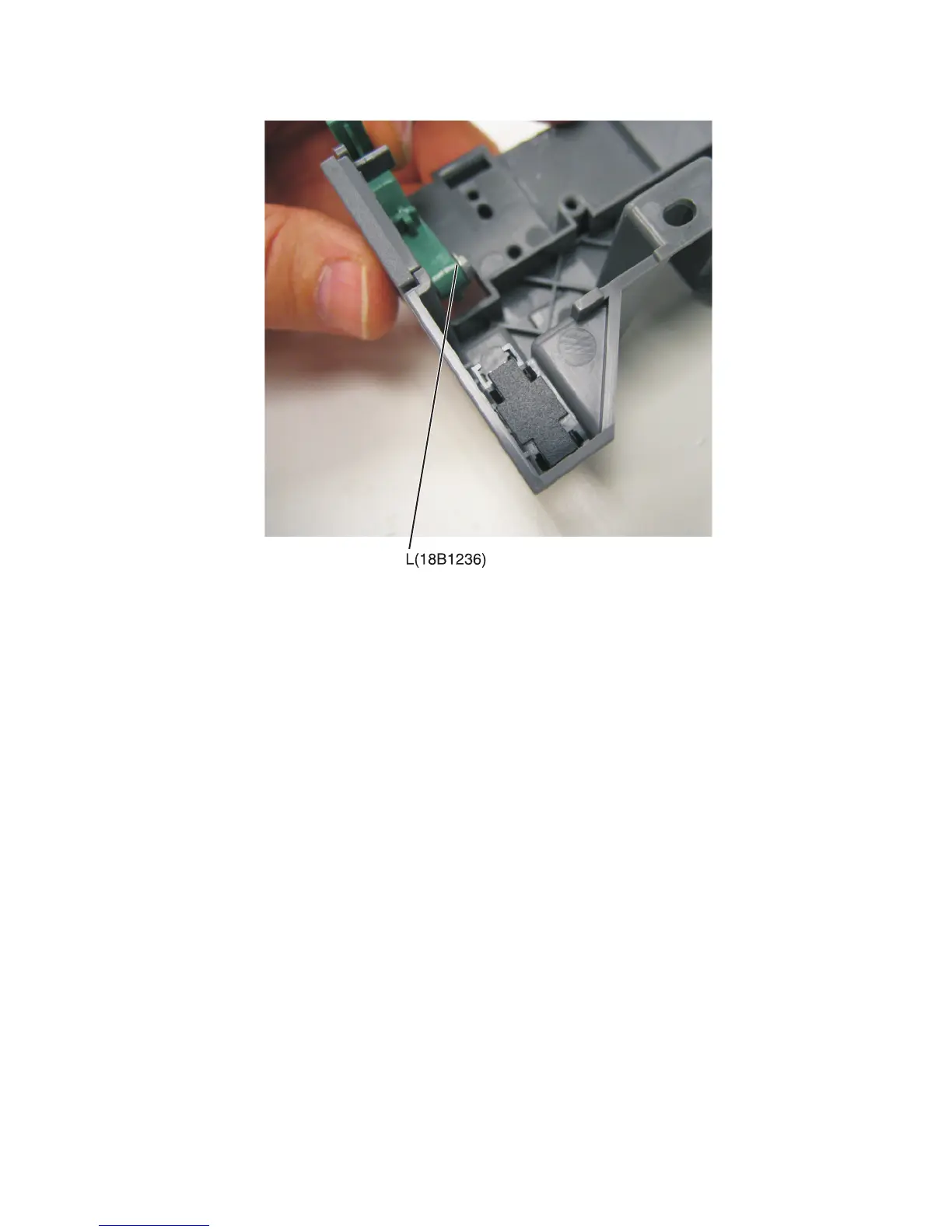

11 Remove the screw (L), and remove the spring bracket.
Note: For non-wireless models, remove the screw, and remove plate from your printer if it does not have a
wireless antenna.
Installation notes:
a Reinstall the spring bracket and the wireless antenna plate (or the blank plate).
b Connect the cable to the tray present sensor, and put the spring in place before installing the right lower frame.
5027
Repair information
283
