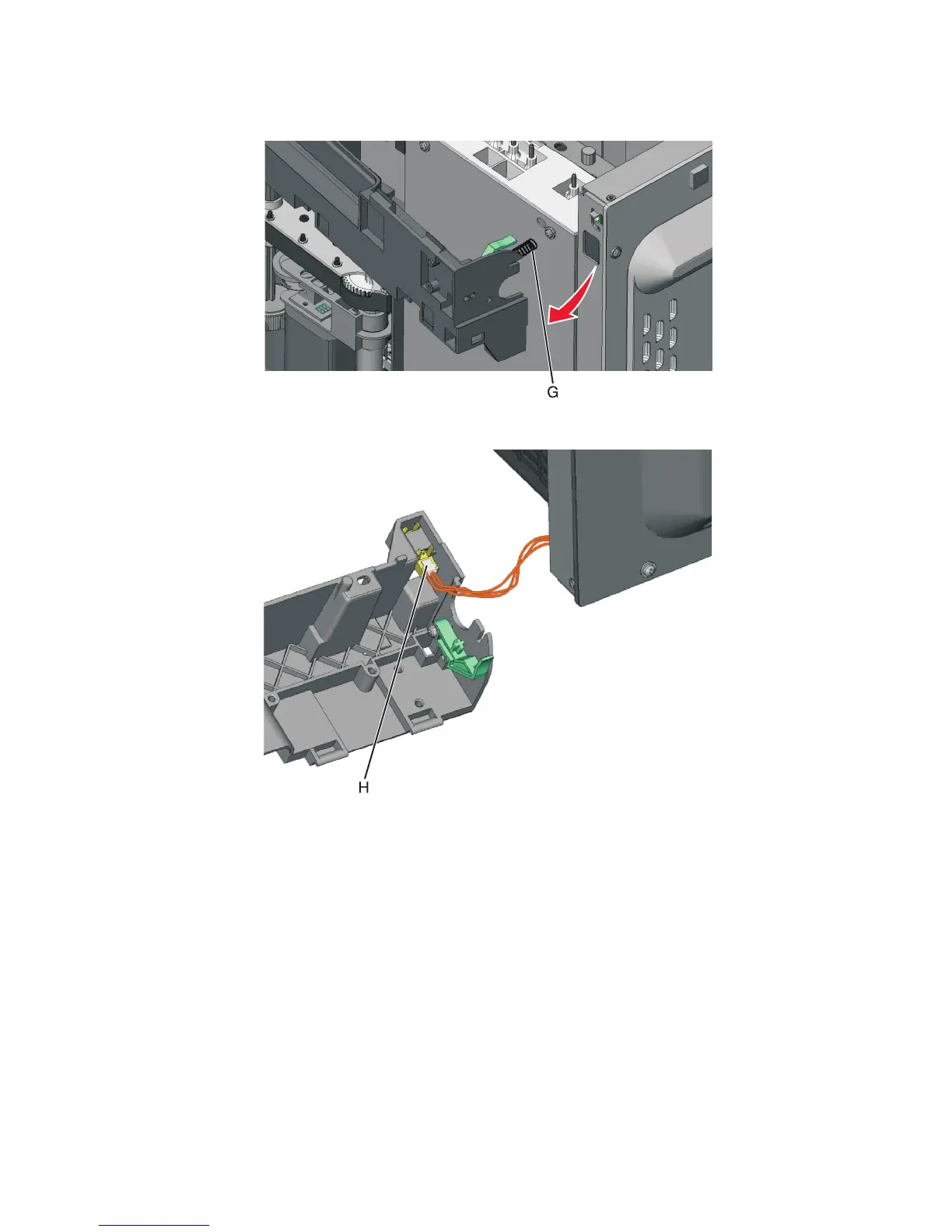

8 Swing the rear part away from the printer to access the spring, and remove the spring (G) from the right lower
frame.
9 Disconnect the cable (H) from the tray present sensor.
10 Swing the rear of the lower frame away from the printer, and remove the right lower frame.
Note: There are parts in the right lower frame that are not included in the frame. The following instructions
show how to remove them.
