5 Remove the bin-full/narrow media sensor flag. See “Bin‑full/narrow media sensor flag removal” on page 231.
6 Remove the right out put bin deflector. See “Right output bin deflector removal” on page 271.

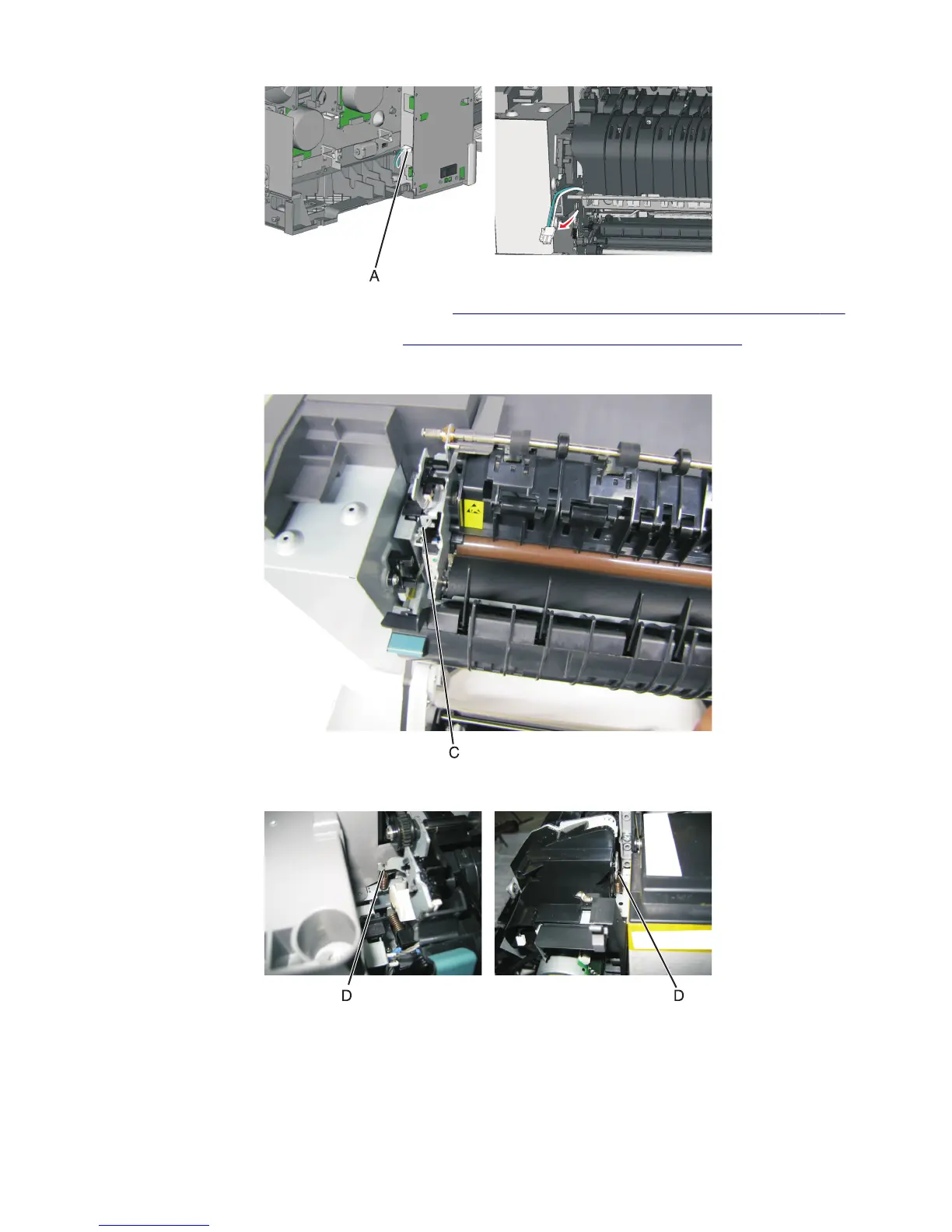

7 Disconnect the cable (C) from the bin‑full/narrow media sensor, and unroute the cable from its retainer.
8 Unhook the springs (D) from both sides of the fuser.
9 Disconnect the thermistor cables (E), and pull them over the retainer.
