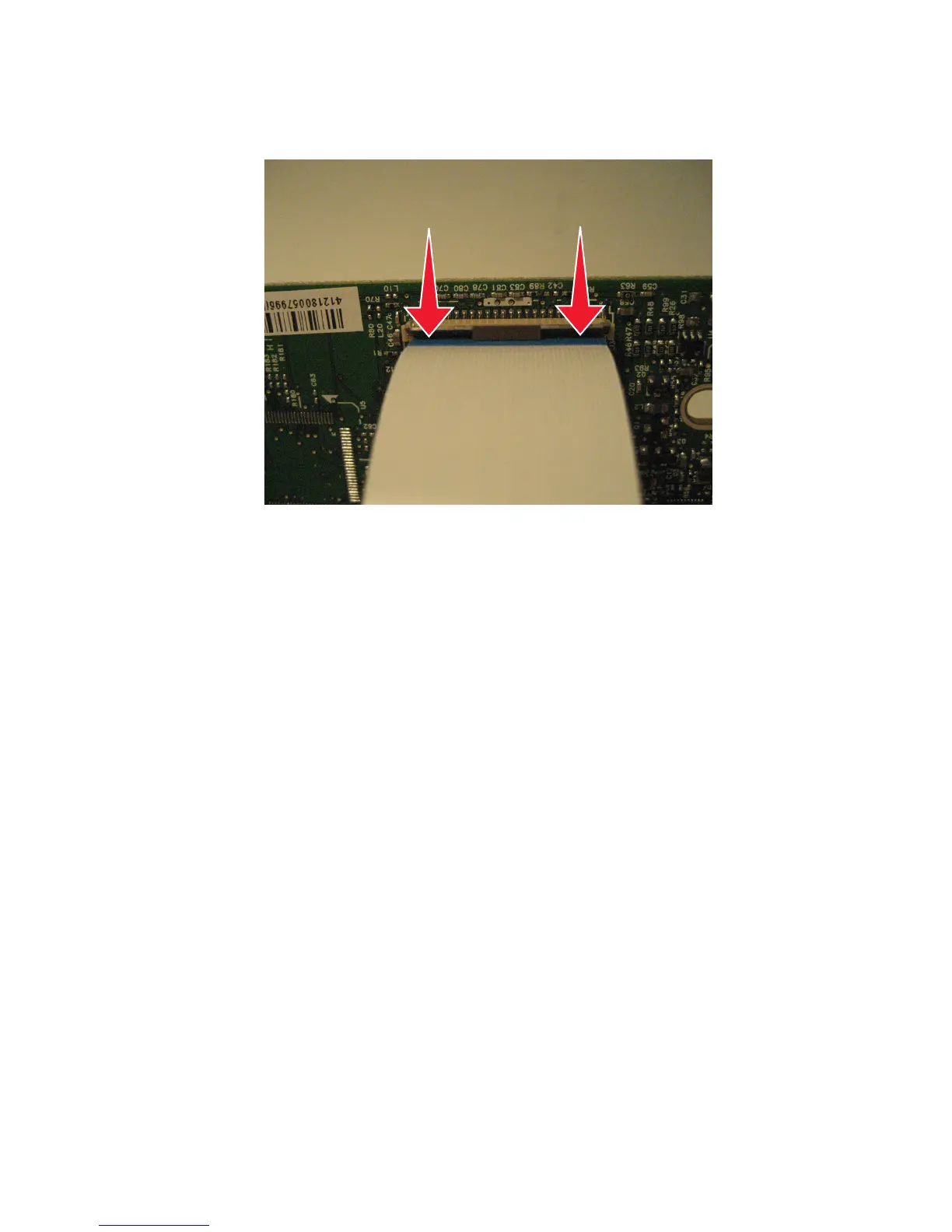

3 Rotate the locking actuator to the locked position by pressing down on both ends of the actuator. The cable should

not move when this step is performed. If the cable moves, open the actuator, reposition the cable, and then close

the actuator to the down position.

5027

Repair information

214
