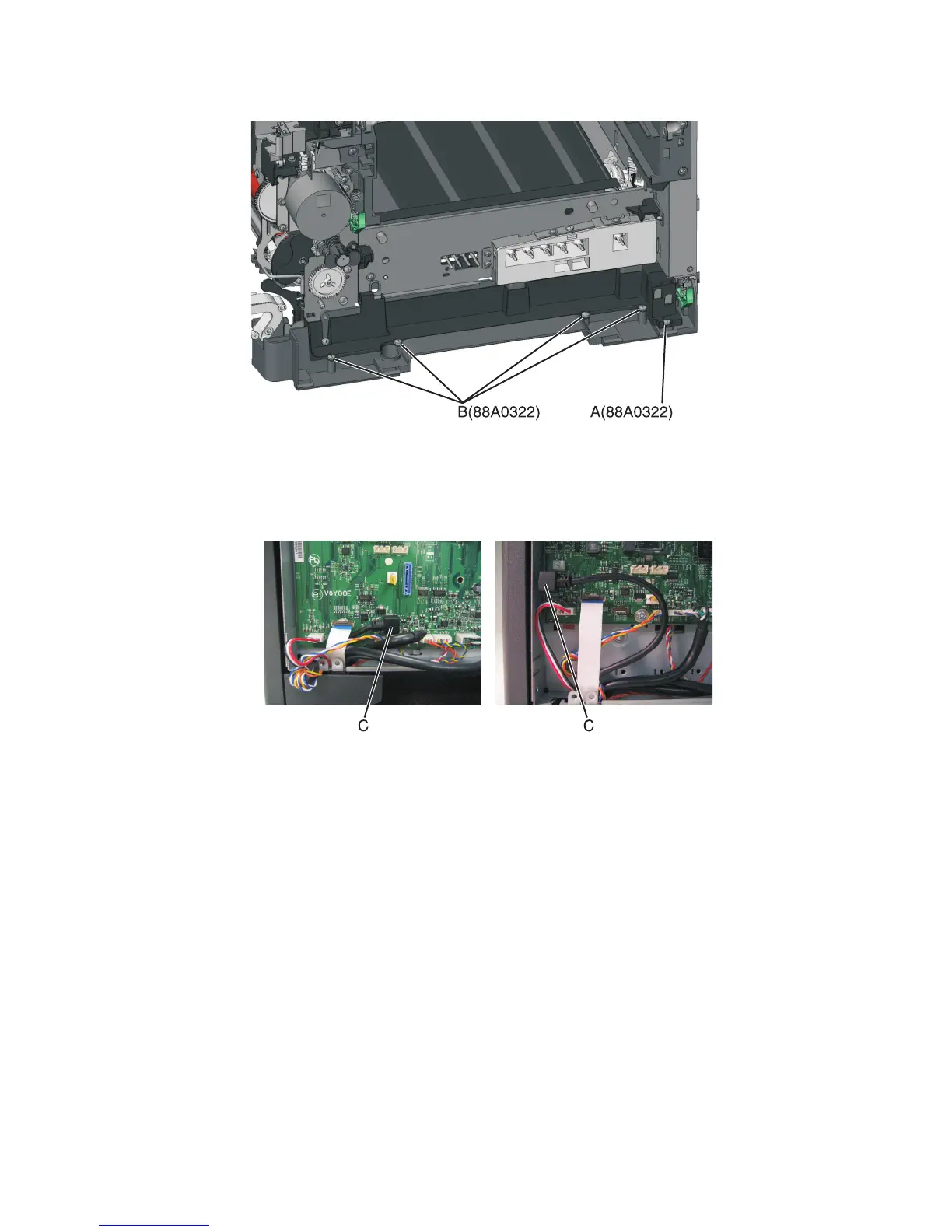

5 Remove the four screws (B) from the cable cover.

6 Disconnect the USB port cable (C) from the controller board.

Note: The picture below shows the position of the cable in the CS310 and CS410 models (left) and the CS510

models (right).

5027

Repair information

264
