Actions Yes No
Step 1
Turn the printer off.
Remove the rear cover. See
“Rear cover removal” on page 290.
Remove the operator panel. See
“Operator panel removal (for CS410
models only)” on page 256.

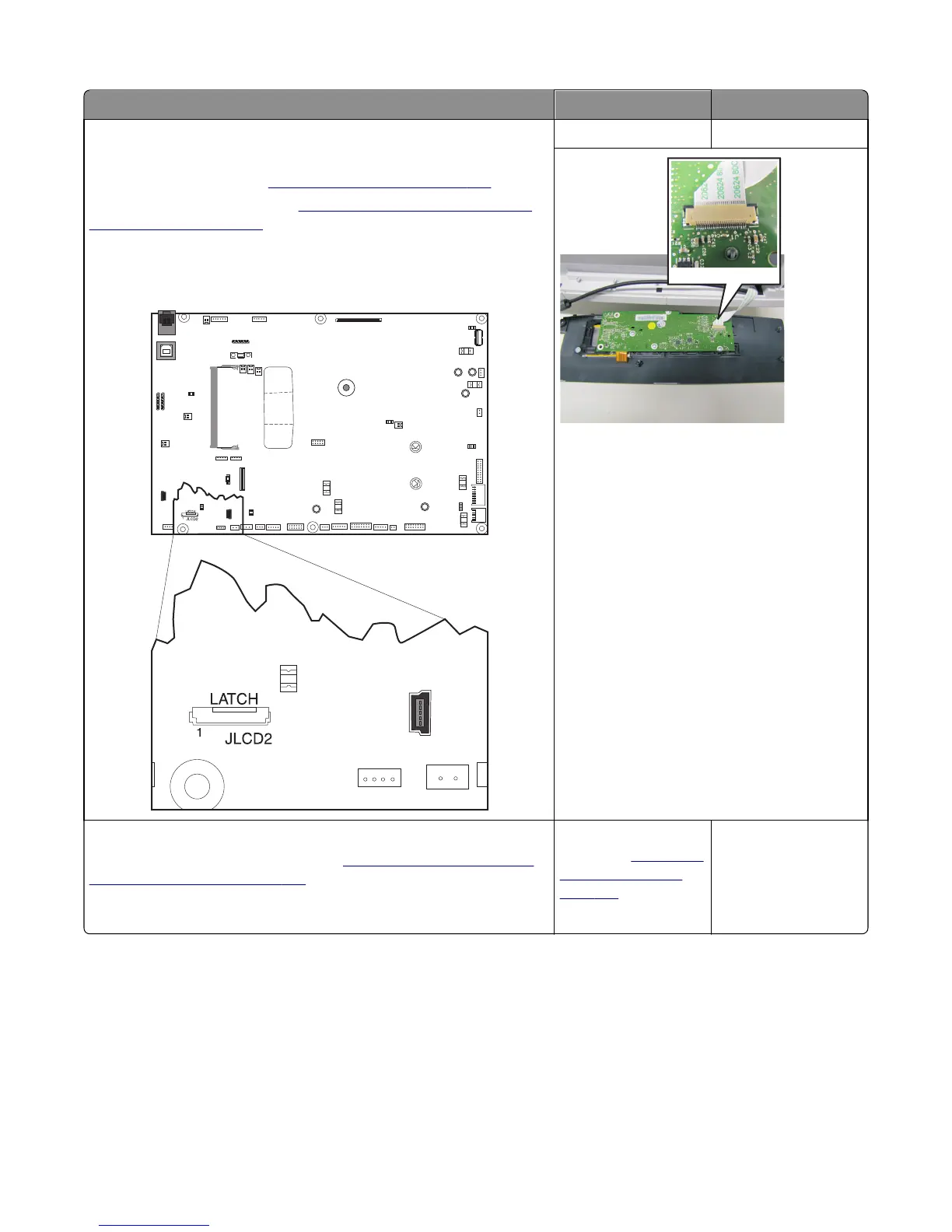

Is the operator panel assembly cable properly installed at JLCD2 on the
controller board and the operator panel assembly?
Go to step 2. Reinstall the cable.
Step 2
Replace the UICC card with display. See
“Operator panel removal (for
CS410 models only)” on page 256.
Is the operator panel still blank?
Replace the controller
board. See
“Controller
board removal” on
page 291.
Problem resolved.
For CS510 models:
5027
Diagnostic information
