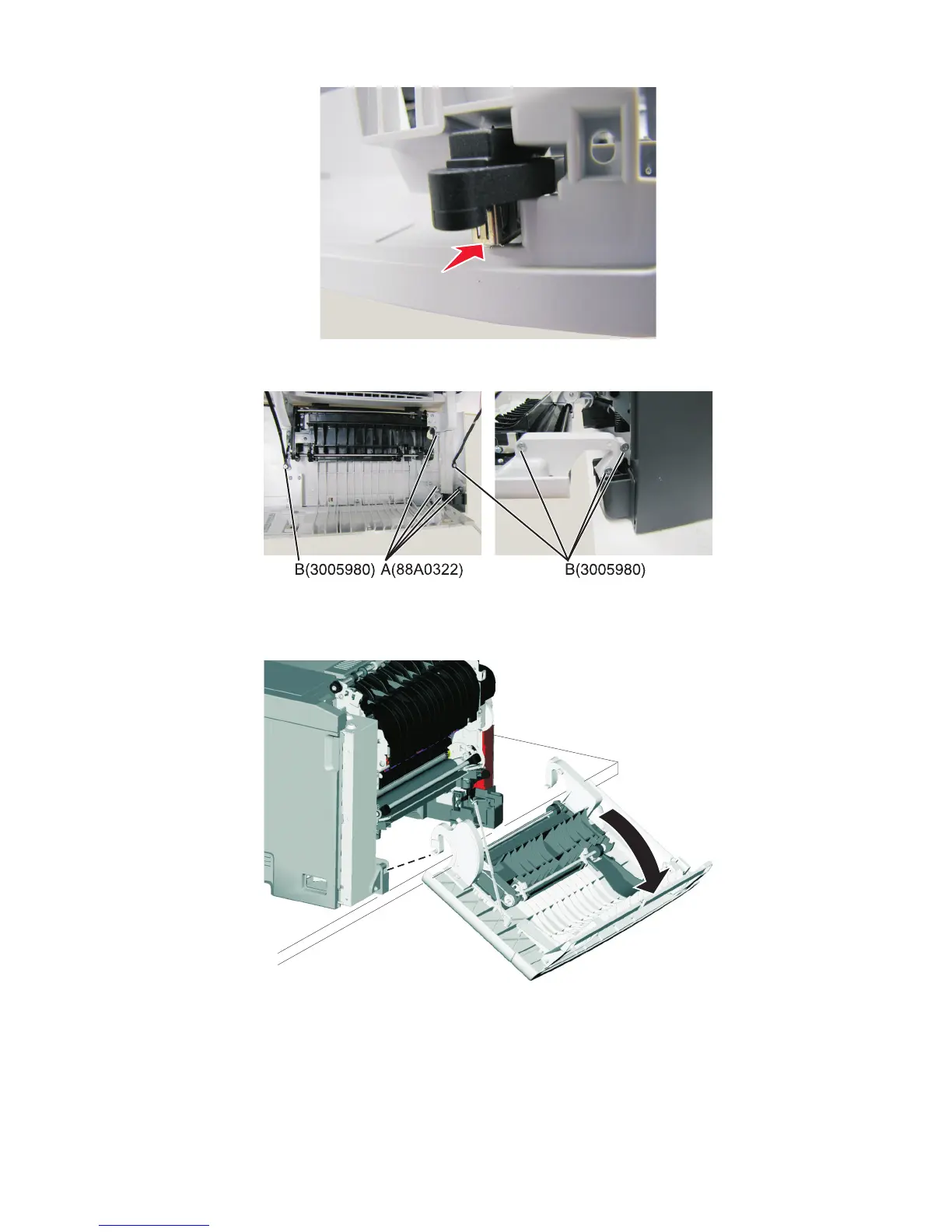

6 Remove the four screws (A) and the five screws (B) from the front cover.

7 Remove the cable cover and the front cover switch.

8 Lower the front cover to align the flats on the hinges, and remove the front cover.

5027

Repair information

253
