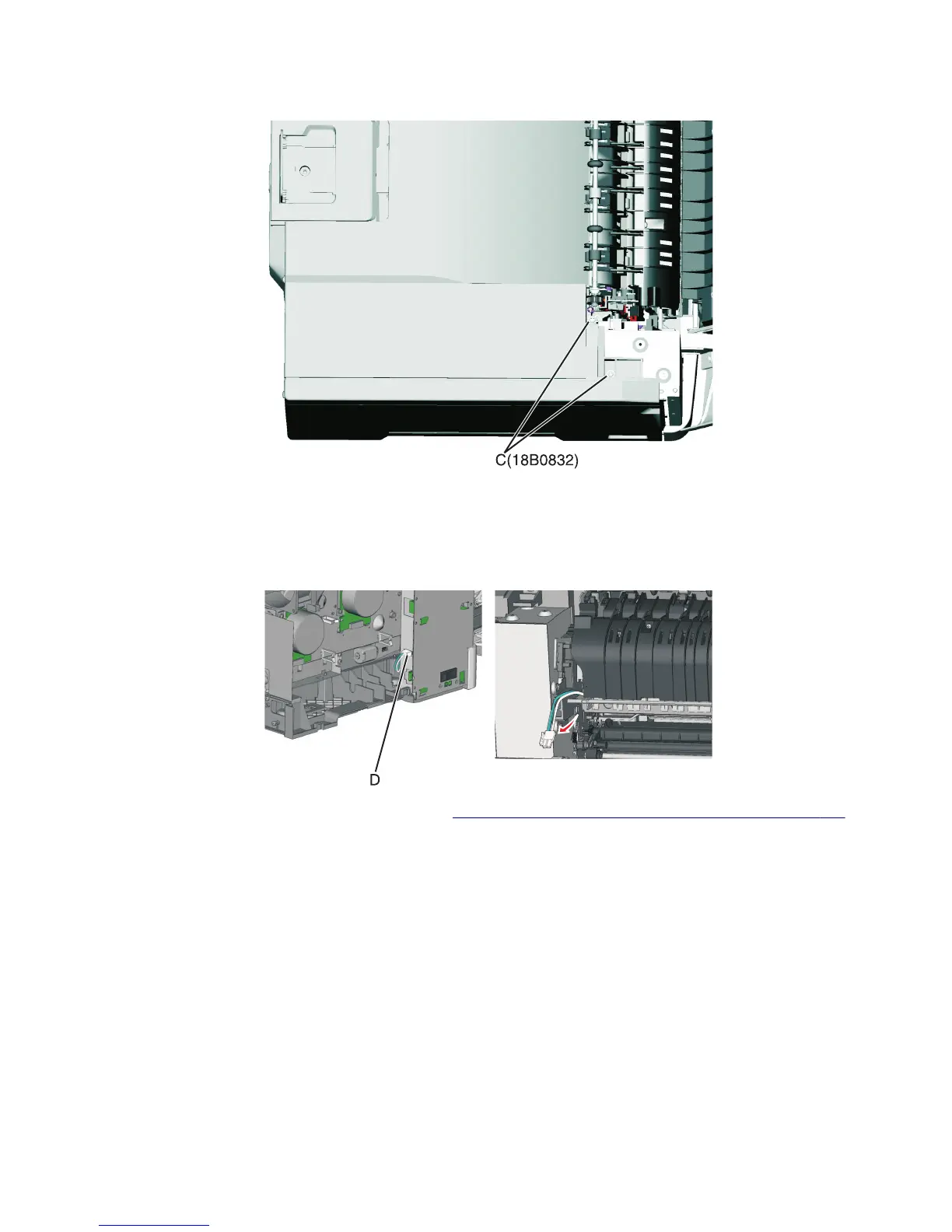

5 Remove the two top screws (C) near the front holding the top cover to the LVPS shield.
6 Position the fuser cable (D) so that it can be pulled through from the front of the printer, and guide the cable through
to the front.
Warning—Potential Damage: Be careful not to damage the cable by pulling too hard or cutting the cable
insulation.
7 Remove the bin-full/narrow media sensor flag. See “Bin‑full/narrow media sensor flag removal” on page 231.
