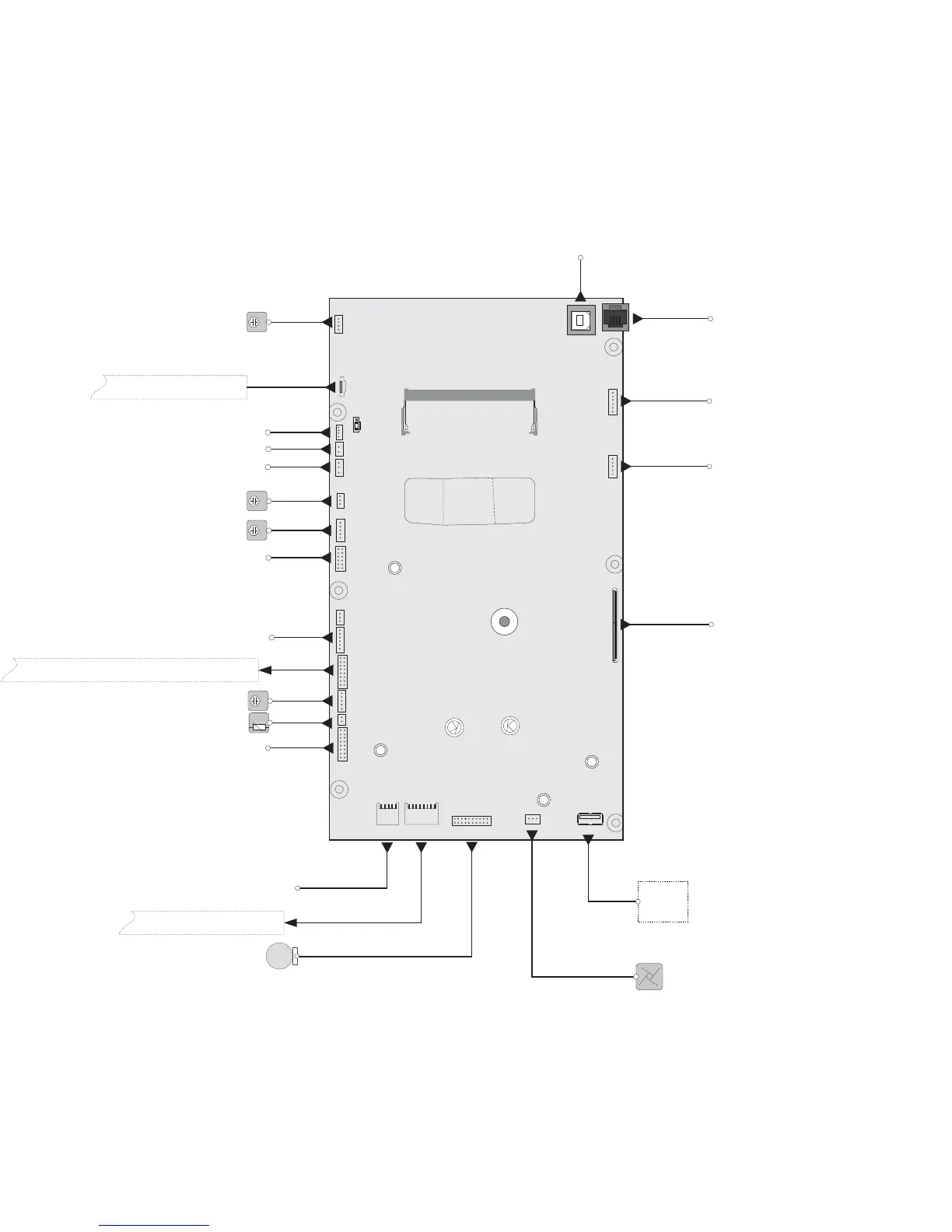

Lexmark CS310 - Page 375

JCARTB1
1
JFAN1
JLVPS1
JOPT1
11
JSP1
1
1
JTHM1
1
JTPS2
1
JHVPS1
1
JBIN1
1
1
JFUSES1
1
JTPS1
1
JTRAY1
JINT1
1
JCVR1
1
JSC1
1
JWT1
1
JOP1
1
J1
1
JCTM1
1
JMIRR1
1
JWIRE1
JUSB1
JETH1
JPH1
1
TOP
USB
CARTRIDGE DRIVE MOTOR
OPTIONAL TRAY
PAPER PICK ASM
FUSER THERMISTOR
TONER PATCH SENSOR2
NARROW MEDIA FUSER EXIT
FUSER
TONER PATCH SENSOR1
TRAY PRESENT
SAFETY INTERLOCK
COVER OPEN
WASTE TONER SENSOR
CONNECTS TO DEV/TRANSFER HVPS
CONNECTS TO LVPS
SMART CHIP
BOTTOM
TOP
OPERATOR PANEL
12
2
16
2
2
10
2
16
20
2
PRINTHEAD
PRINTHEAD MIRROR
TONER METER
ETHERNET
PC
