Tray X input sensor (S2) jam service check
The input (S2) sensor is part of the paper pick motor drive assembly FRU, and is not available otherwise.
Actions Yes No
Step 1
a Clear paper path.
b Fan the media.
c Verify the proper tray settings for the media.
d Check the condition of the pick tires.
e Make sure the tray is fully inserted
Does the error clear?
Problem resolved. Go to step 2.
Step 2
Remove tray 1.

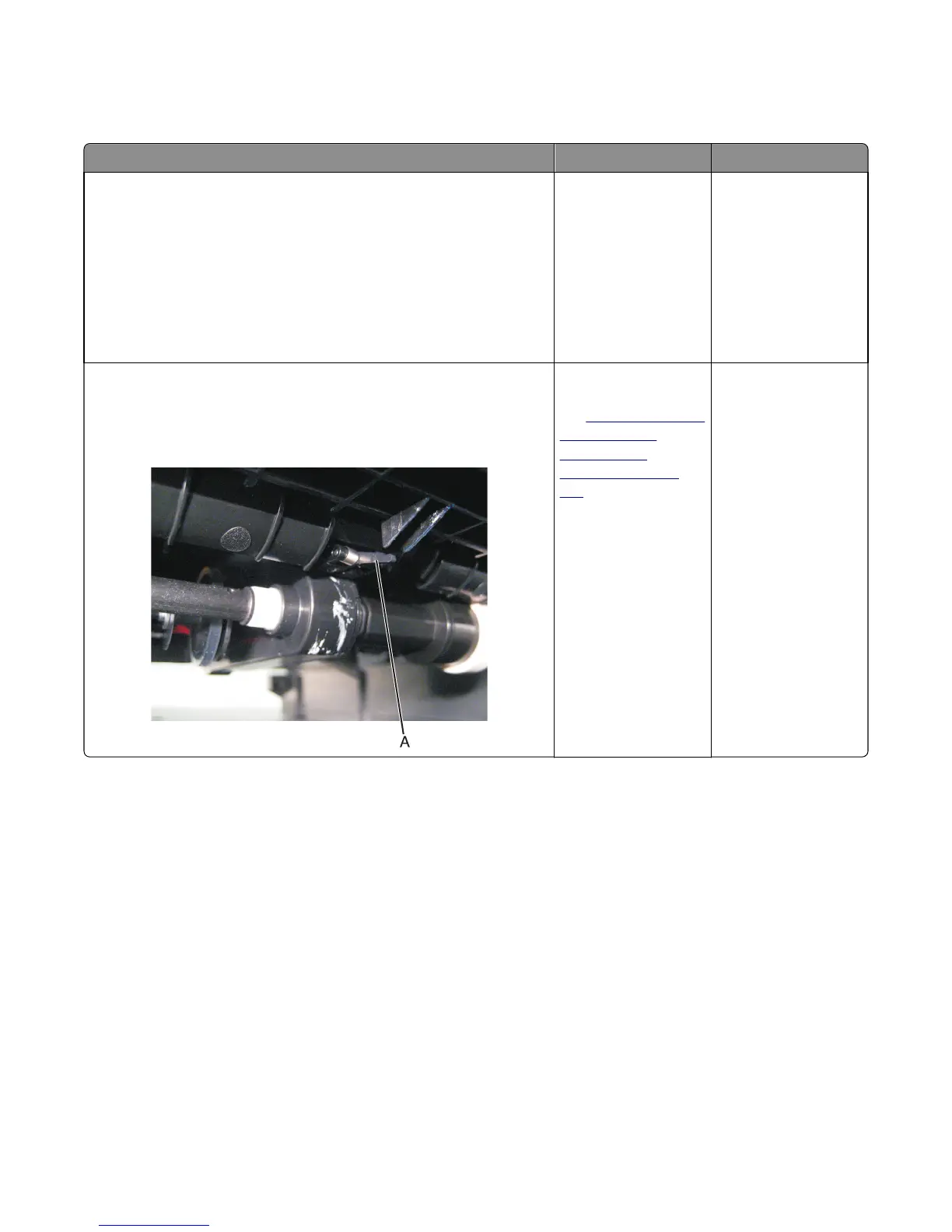

Is the input S2 sensor flag (A) damaged?
Replace the paper pick
motor drive assembly.
See
“Paper pick motor
drive assembly
standard tray
removal” on page
287.
Go to step 3.
