Paper pick motor drive assembly service check
The input (S2) sensor is part of the paper pick motor drive assembly, and is not available separately.
Actions Yes No
Step 1
Check the condition of the pick tires, and replace if necessary. See
“Pick
tire removal” on page 303.
Does this solve the problem?
The problem is solved. Go to step 2.
Step 2
Turn the printer off, and then remove the rear cover. See
“Rear cover

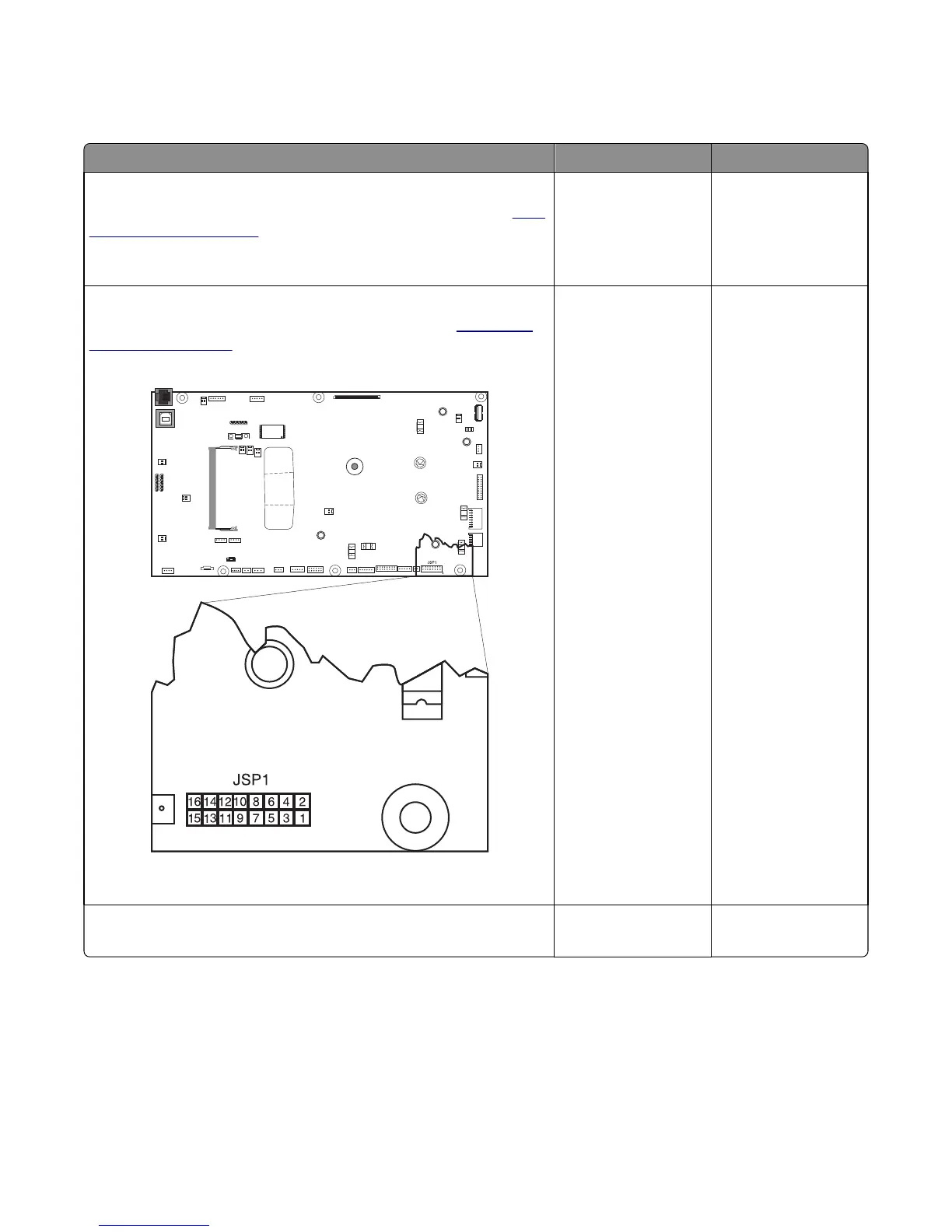

removal” on page 290. Check the table at JSP1 on the controller board
for proper connection.
Is the cable properly connected?
Go to step 4. Properly connect the
cables, and POR the
printer.
Go to step 3.
Step 3
Did the printer function correctly after reconnecting the cables?
The problem is solved. Go to step 4.
