Operation
Operation
e3861472a
1
2

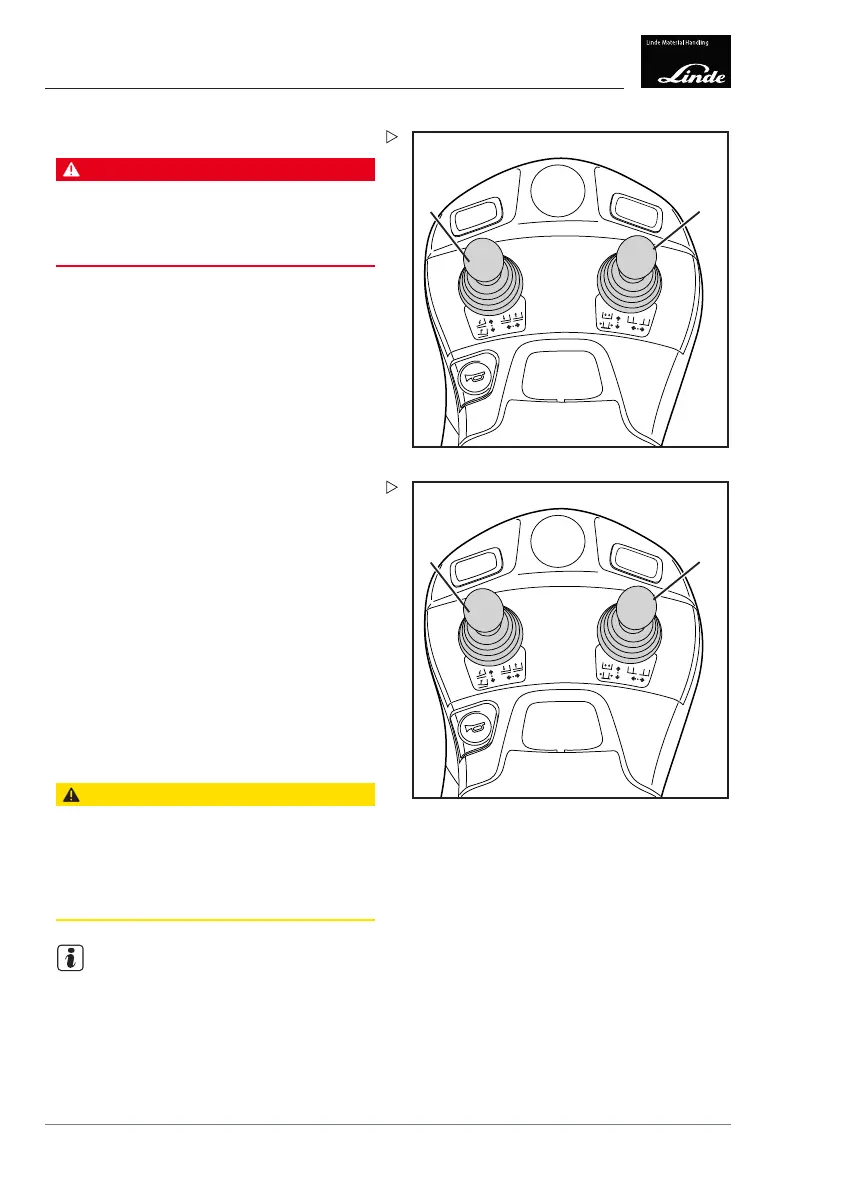

Lifting the fork carriage
DANGER
When lifting the fork arms, t
here is an increased risk
of falling and crushing.
For this reason, it is not pe
rmittedtostepontothe
raised fork arms.
Push joystick (1) to the r
ight.
Lowering the fork carri
age
Push joystick (1) to the left.
e3861472a
1
2
Tilting the lift mast forwards
Push the joystick (1) forwards.
Tilting the lift mast back
Pull the joyst
ick (1) backwards.
Operating the
attachments
Attachments can be fitted to the truck as
special equipment (sideshift, fork prong
positioner, clamp etc.). Observe the working
pressure and operating instructions for the
attachment. An additional joystick (cross
lever) is fitted for operating these attachments.
CAUTION
Attachments alter the load capacity and stability of
the truck.
Attachments that are not supplied with the truck
may only be used if the service partner has confir-
med that the arrangement in terms of load capacity
and stability ensures safe operation.
N
OTE
T
he methods of operating the attachments de-
s
cribed here are examples. The configuration
o
f the joystick may vary depending on your
t
ruck's equipment.
130 Operating Instructions – 3888011701 EN – 12/2017
