Linde E35 - Gearbox; Checking the Oil Level in the Planetary Transmission

5
Service work
Gearbox
Gearbox
e3871126a
1

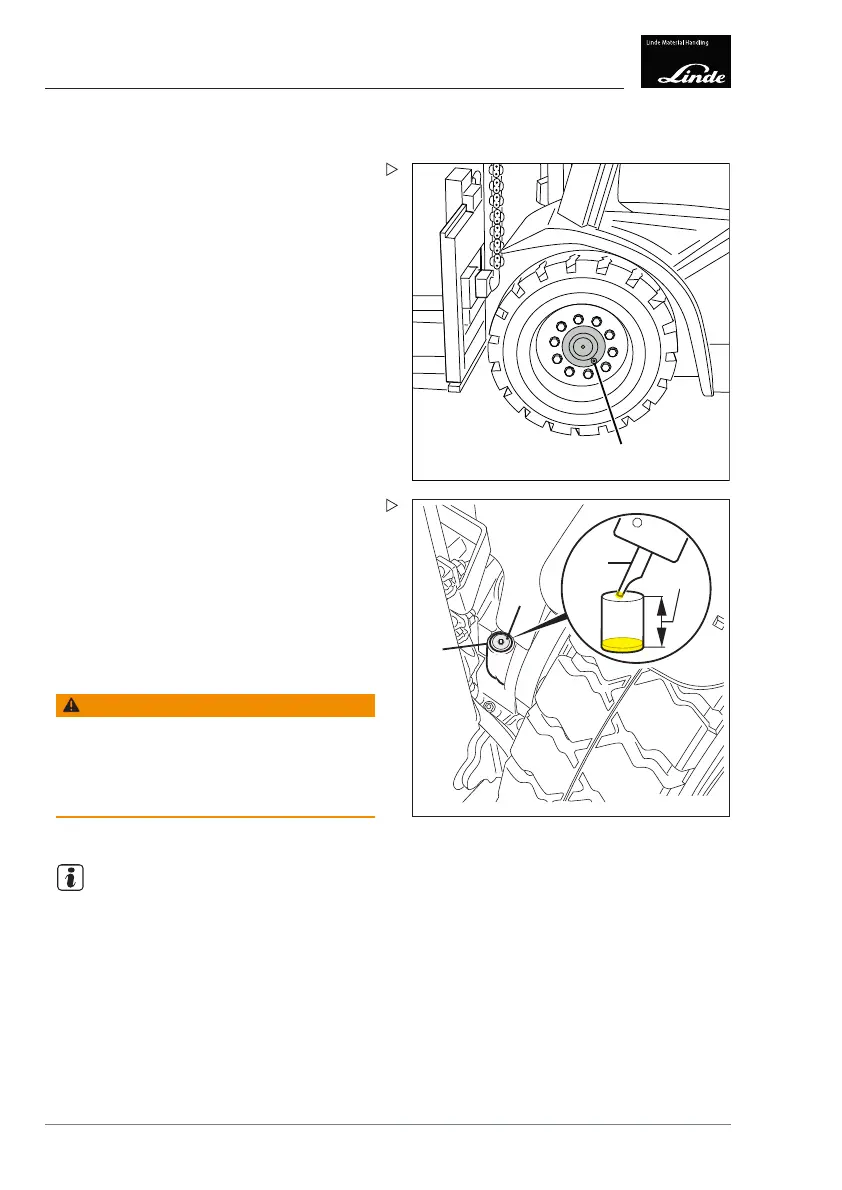

Checking the oil level in the planetary
transmission
 Position the truck so that the checking screw
(1) is between the 5 o'clock position and the
6 o'clock position.
 Switch off the truck.
 Clean area around the fille
rplug(3).
 Unscrew the filler plug (3).
 For single tyres and twin tyres, fix the depth
gauge (2) at 112.5 mm and insert it into the
filling opening (4).
e3881117
2
3
4
112,5 mm
 Remove the depth g
auge.
 Check the oil level.
At the minimum oil level, oil must be visible at
the depth gauge measuring tip.
• Minimum oil lev
el: 112.5-mm adjustment
dimension on th
e depth gauge
• Maximum oil level: 110.5-mm adjustment
dimension on the depth gauge
WARNING
Risk of accident. Topping up the gearbox oil using
oil with the wrong viscosity may result in the brake
malfunctioning.
Only use gearbox oil approved by the manufacturer.
Refer to the chapter entitled "Consumables".
 Top up the gearbox oil if necessary.
NOTE
Drain off excess oil via the checking screw (1);
tightening torque: 20 Nm
 Check the oil
level again.
 Screw in and tighten the filler plug (3).
Tightening torque: 45 Nm
218 Operating Instructions – 3888011701 EN – 12/2017
