4
Operation
Workingwithaload
Workingwithaload
e3871492
1800 kg
1700 kg
1600 kg
1500 kg
1400 kg
1300 kg
2000 kg
1100 kg
1000 kg
900 kg
800 kg
700 kg
600 kg
500
400
600 700 800 900 1000 mm
7000 mm
6900 mm
6700 mm
6500 mm
6300 mm
6000 mm
4700 mm
1200 kg
387(E20) + 1522/1523
1 2
345

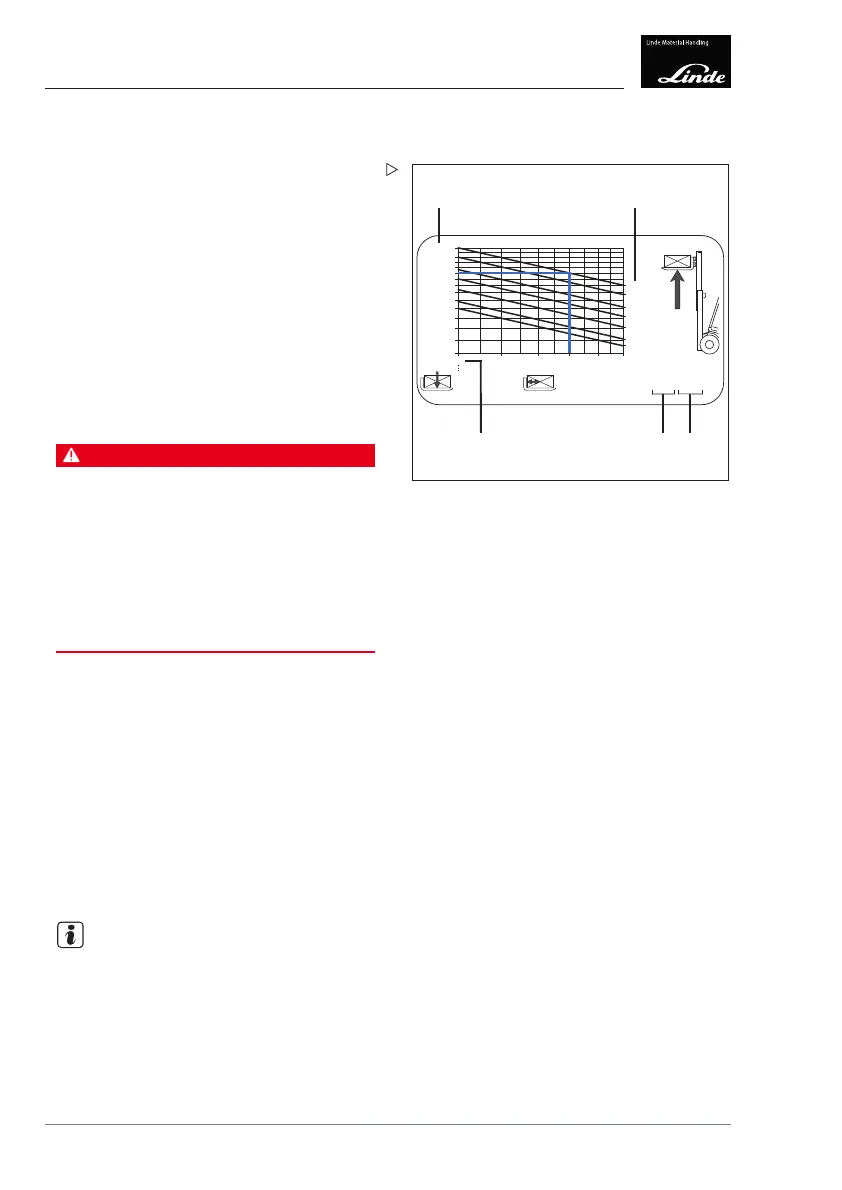

Load capacity diagram
Before picking up the load, observe the load
capacity diagram.
1
Maximum weight of permissible loads
in kg
2
Lift height in mm
3
Lift mast series
4
Series designation of the truck with
maximum load capacity
5
Distance between load centre of
gravity and the fork back in mm
DANGER
Risk to stabilit
y
The values speci
fied in the load capacity diagram
apply to compac
t, homogeneous loads. These
values must not
be exceeded because this impairs
the stability
of the truck and the rigidity of the fork
arms and lift
mast.
When using a
ttachments, observe the additional
capacity ra
ting plate provided for each attachment
(for an exp
lanation, refer to the section entitled
"Addition
al capacity rating plate for attachments").
The load ca
pacity of a truck is determined by:
• The type of lift mast (standard, duplex,
triplex)
• The lift height of the installed lift mast
•Thetyres
on the front axle
• The use of attachments or additional
equipment
• The backwards tilt restriction
If one o
f these parameters is changed, this
can hav
e a considerable effect on the load
capacit
y.
NOTE
The load capacity is also limited when:
•
Transporting off-centre or swinging loads
•
Transporting loads with the lift mast tilted
forwards or with the load not close to the
ground
154 Operating Instructions – 3888011701 EN – 12/2017
