Linde E35 - Inserting the Battery

Operation
4
Drive batteries
2
e3871439
1

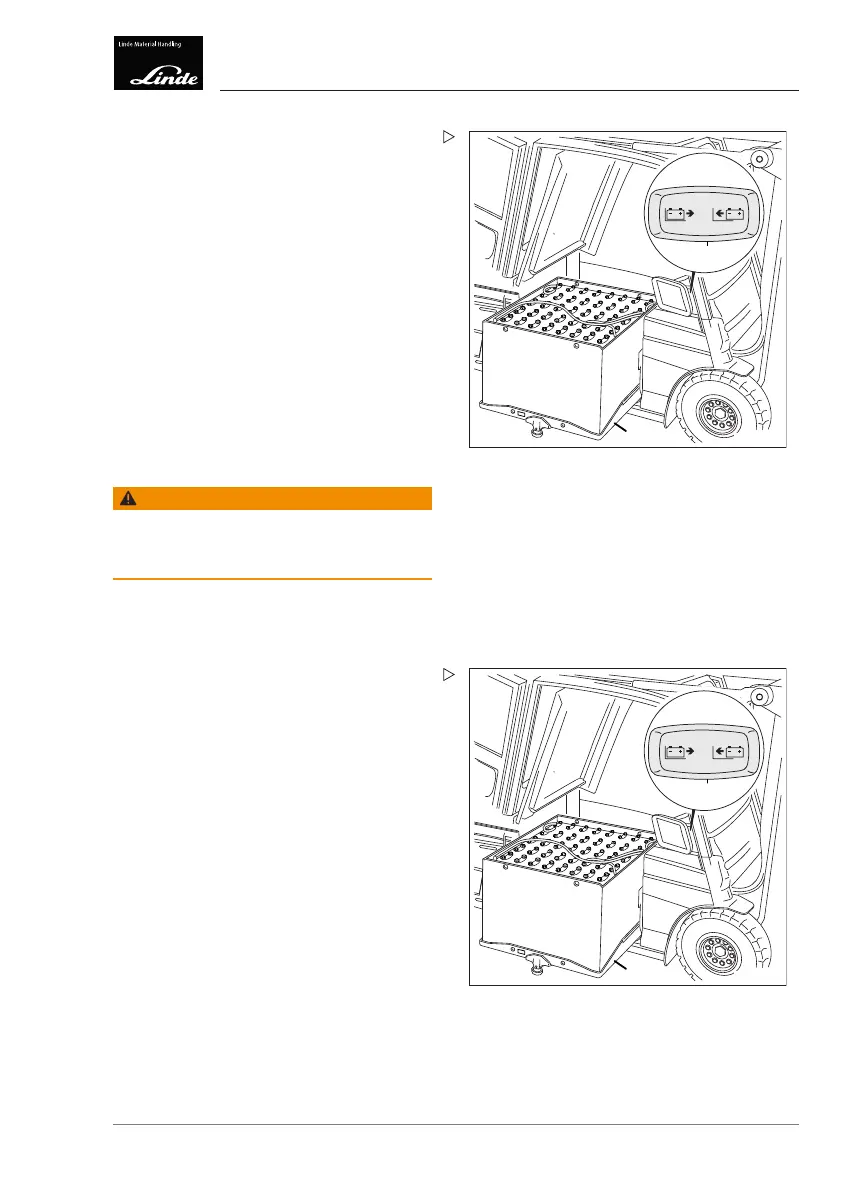

Ejecting the battery
 Move the steering axle to the straight-ahead
position.
 Activate the battery carrier
using a push
button (1), which is located o
n the exterior
of the truck console on the rig
ht-hand side.
 Press the push button (1) so the push button
is in the "eject" position.
The locking cylinder extends. It blocks the
steering axle. The battery is then ejected over
halfway (approx. 60%).
 Disconnect the battery mal
e connector from
the battery female conne
ctor.
 Insert lifting gear into the openings provided
in the battery tray.
WARNING
Risk of accident if unsuitable lifting gear is used.
Only use suitable lifting gear and a crane with
sufficient load capacity.
 Lift the battery and remove it.
 Set down the battery in a suitable place.
2
e3871439
1
Inserting the battery
 Insert the battery into the battery support
(2), ensuring that the battery is positioned
correctly
 Remove the lifting gear.
 Connect the battery male connector and the
battery female connector.
 Press the push button (1) so the push button
is in the "retract" position.
The battery is retracted. Once the battery
is completely retracted, the locking cylinder
begins to retract. Once the locking cylinder
is completely retracted, the steering axle is
unlocked and the green symbol LED in the
push button (1) lights up.
 Release the push button (1). The green
LED goes out.
 Close the side battery door. Ensure that the
side battery door is closed correctly.
Operating Instructions – 3888011701 EN – 12/2017 185
