4
Operation
Drive batteries
Close the battery hood.
5
4
e3871449a

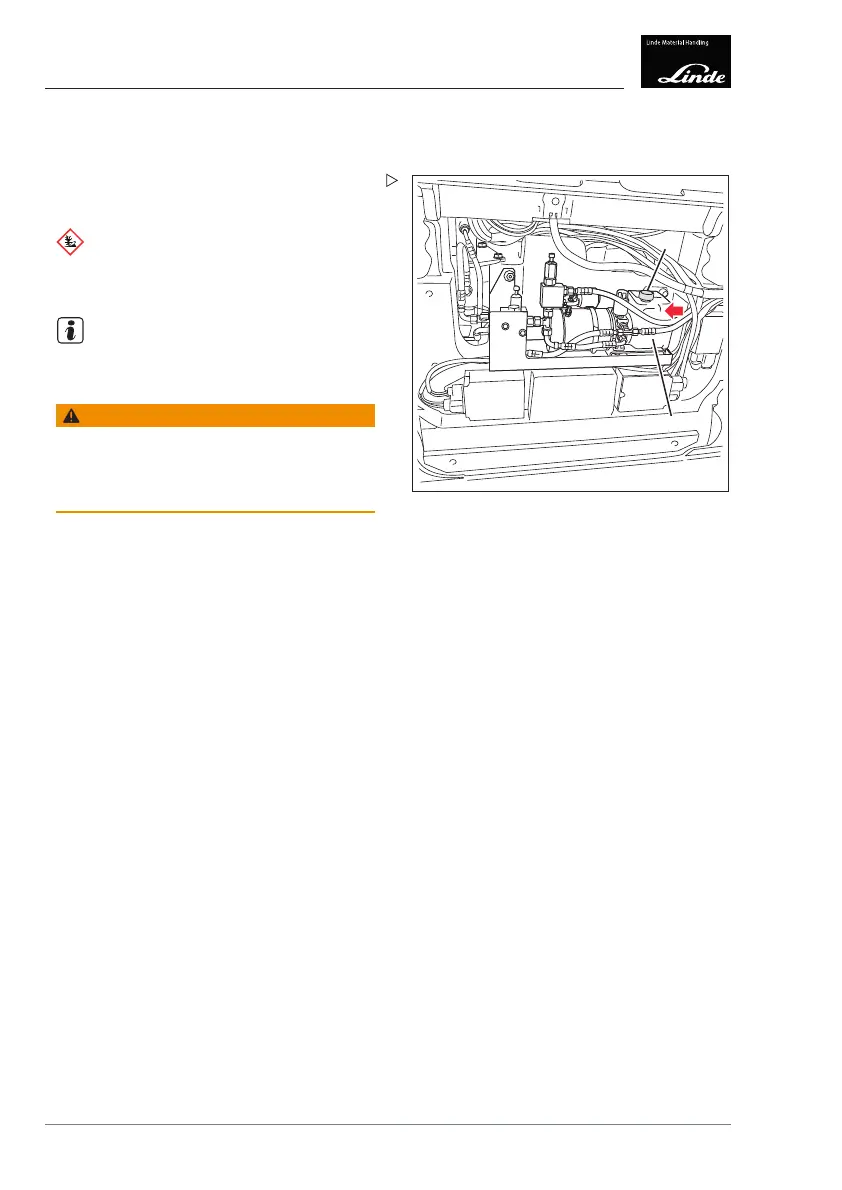

Checking the oil level of the hydraulic
power unit
ENVIRONMENT NOTE
Observe information reg
arding working with
consumables.
NOTE
Only check the oil level when the battery is
retracted.
WARNING
Risk of crushing fingers and hands.
Before opening the battery hood, always slide the
driver's seat and armrest all the way back. Other-
wise, the battery hood may shut unintentionally.
Unlock the battery hood.
Open the battery ho
od completely
Check the oil level in the hydraulic tank (5).
Observe the oil level marking (see arrow).
Unscrew the cap screw (4).
If necessary, a
dd hydraulic oil (standard oil;
see the "Consum
ables" chapter) up to the
corresponding oi
l level marking
Screw the cap screw back onto the tank.
Close the battery hood.
Technical data for hydraulic power unit
• Pump-motor power rat
ing: 1.5 kW
• Filling quantity of hydraulic tank: 1.5 l of
standard oil (see Recommendations for
consumables)
• Main current fuse 100 A for pump motor
• Hydraulic power u
nit: set maximum pres-
sure to 180 bar
186 Operating Instructions – 3888011701 EN – 12/2017
