Operation
Drive batteries
Drive batteries
Checking the charging state of the
battery
General
1
3 2

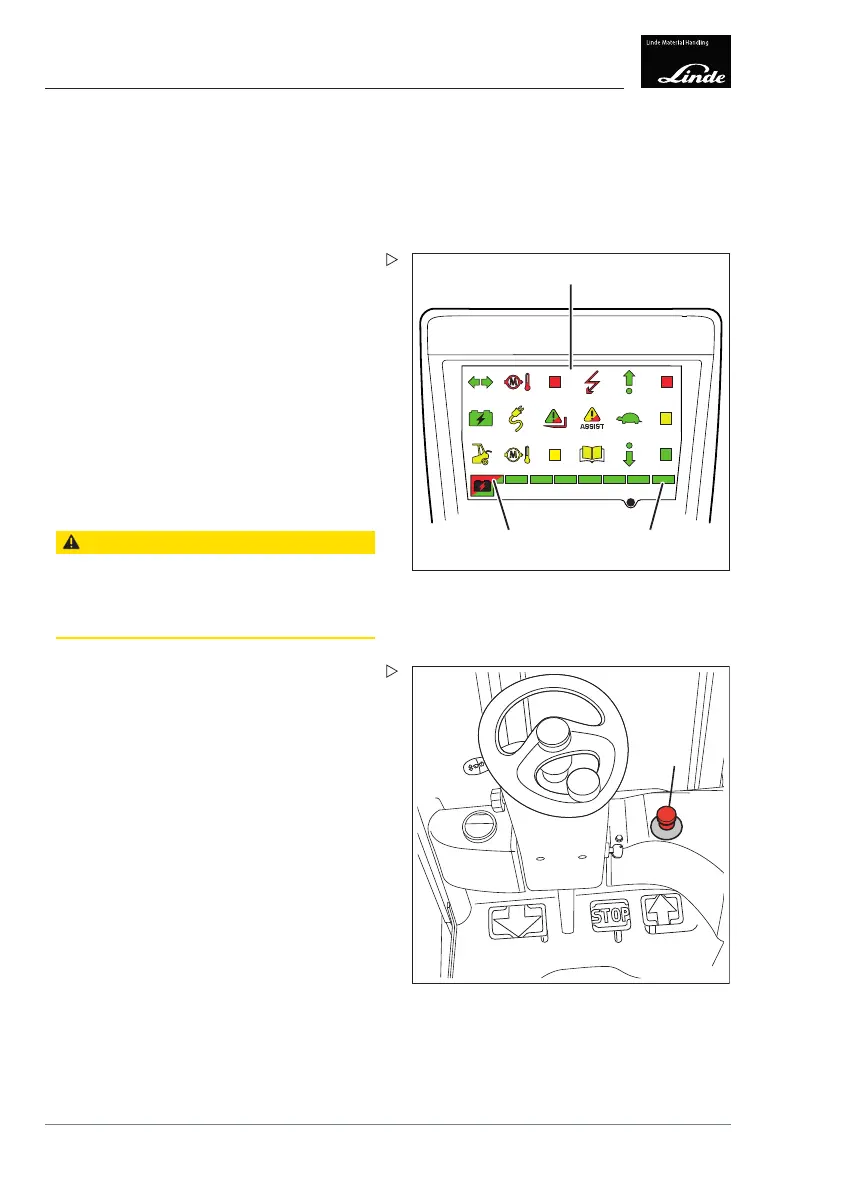

Display_e0040a
The battery's discharge status is shown by an
LED bar display (2) in the display unit (1).
The seven green LEDs go out
one after
another as the battery dis
charges.
When the battery is 75% discharged, the red
LED (3) with the battery symbol illuminates.
At a discharge level of 80% (20% residual
capacity), the lifting speed of the truck is
reduced.
As the battery discharg
es further (residual
battery capacity < 20%)
, the red LED (3)
flashes and the buzzer so
unds.
CAUTION
Repeated deep discharging of the battery can
cause irreparable damage.
If the red LED flashes, the battery must be charged
immediately.
4
e3861447a
Pull the emergency off switch (4) if neces-
sary.
Switch on the truck.
Check the battery's charge status at the
discharge indicator (2) in the display unit
(1).
