Overview
3

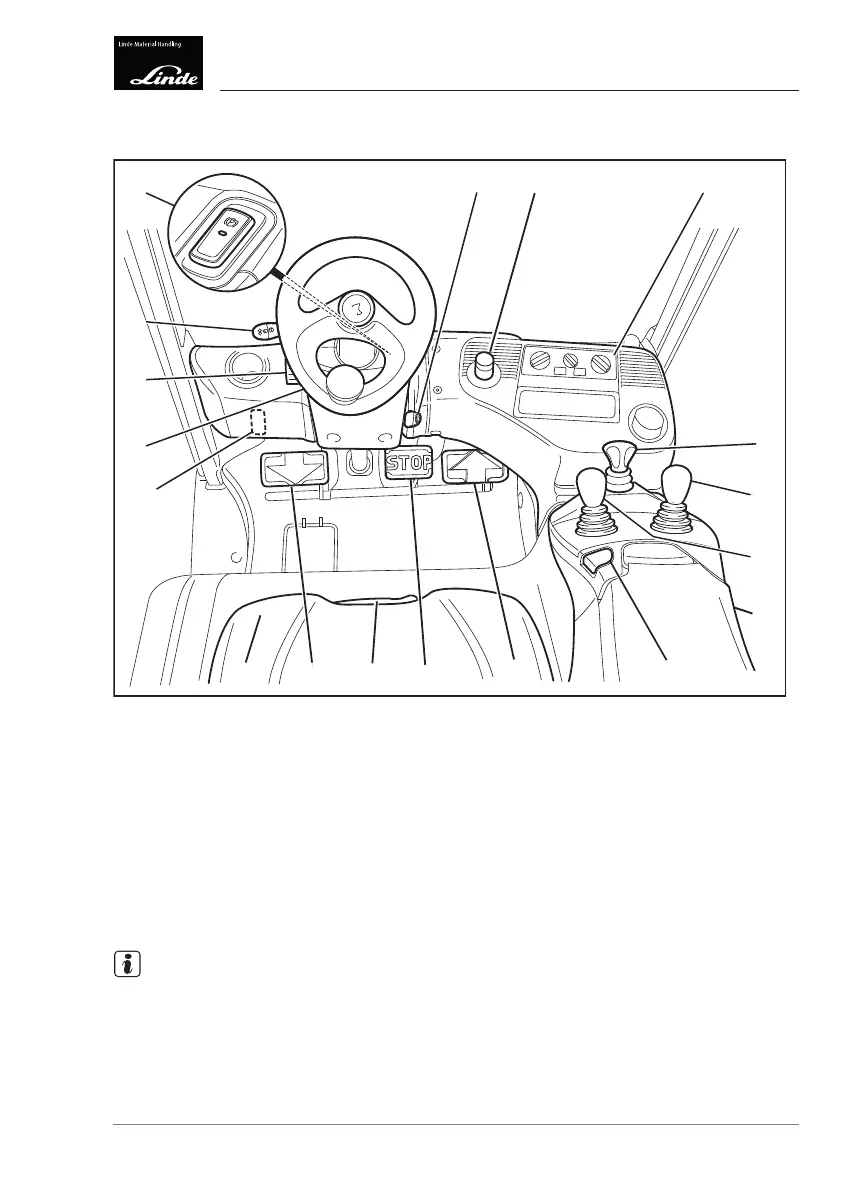

Operating devices
Operating devices
e3871502
1
2
3
4
56 7
8
9
10
11
12
13
14
151617
18
1 Steering wheel
2 Steering column adjusting knob
3 Turn indicator switch
4 Parking brake switch
5 Key switch
6 Emergency off switch
7 Control panel for the heating system (special
equipment)
8 Drive direction switch, single-pedal version
(special equipment)
9 Joystick for attachments (special equip-
ment)
10 Joystick for working hydraulics
11 Armrest
12 Horn signal button
13 Forward travel accelerator pedal
14 Stop pedal
15 Lever for adjusting the driver's seat
16 Reverse travel accelerator pedal
17 Driver's seat with seat switch
18 "Truck configuration" label (for a description,
see "Truck configuration label")
NOTE
The switches for the lighting, the windscreen
wipers and the heating system (special
equipment) can be found in a switch panel
located on the top right-hand side of the
overhead guard, level with the display unit.
Operating Instructions – 3888011701 EN – 12/2017 31
