Operation
4
Drive batteries
e3871428
1
2
Integrated charger
(Linde Power Source)

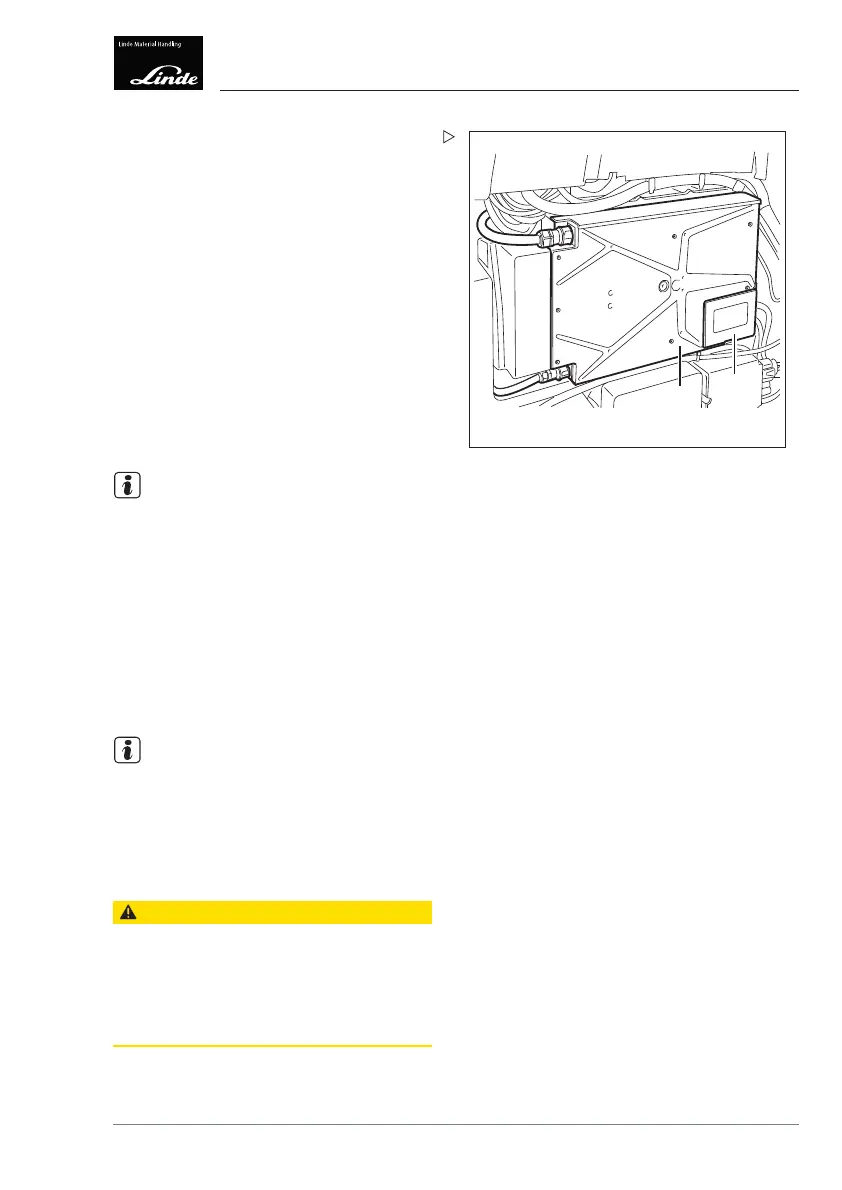

The integrated charger (1) is mounted to the
counterweight behind the battery compart-
ment and is used to charge the truck battery.
To protect the battery charger, there is an
output fuse for the battery charging current
located under the cover (2).
Battery charger types
The battery charger is ava
ilable in the follow-
ing design:
• LPS-80/75 (80 V/75 A)
Three-phase, 400-volt AC mains supply
NOTE
Battery charger LPS-80/75 (80 V/75 A) is a
class-A device in accordance with EN 55011.
The device may be operated in all areas that
are directly connected to the low-voltage
power supply and that supply domestic
buildings, apart from living areas. Approval
from the electricity supply authorities is
required to also operate class A devices
in living areas or in areas that are directly
connected to a public low-voltage power
supply. Contact your service partner.
NOTE
With a new battery
, the battery charger must
be set prior to its
first commissioning using
the diagnostic pr
ogram (setting the charging
characteristic c
urve). This step does not need
to be carried out i
f the battery is supplied by
the factory. Cont
act your service partner.
CAUTION
Incorrectly selected charging characteristic curves
may destroy the battery.
Before initial charging, the correct charging charac-
teristic curve must be programmed in the battery
charger.
Contact your service partner.
Operating Instructions – 3888011701 EN – 12/2017 189
