Overview

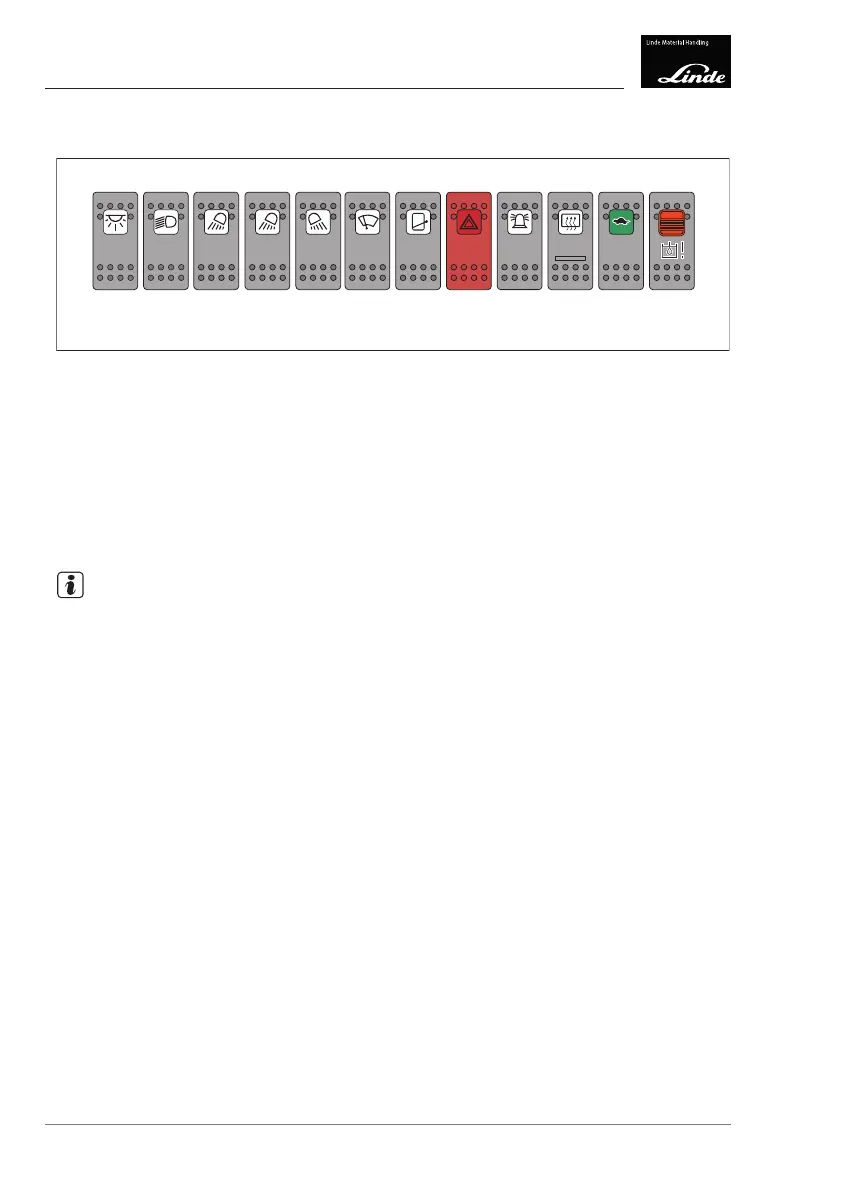

Switch panel
Switch panel
1234 6578109 11 12
e3861458a
1 Clipboard light and interior lighting
2 Standard lighting or higher lighting
3 Working spotlight, position 1/2
4 Working spotlight, position 3/4 or working
spotlight, position 5/6
5 Working spotlight, position 7/8
6 Front windscreen wiper and rear window
wiper - continuous operation on/off (intermit-
tent mode depending on the drive direction;
the washer system is always activated)
7 Roof panel wiper - intermittent mode or
continuous operation on/off (the washer
system is always activated)
8 Hazard warning light
9 Rotating beacon, flashing beacon or
BlueSpot
10 Rear window heating
11 Driving speed reduction
12 Depressurisation of working hydraulics
NOTE
The switch panel is mounted at the top right
of the overhead guard. The configuration and
arrangement of individual switches may vary,
depending on the version. Observe the switch
symbols.
