Operation
4
Workingwithaload
Mast positioning
10:30
03.03.2015
EFF
°
0,0
1
2
Display_e0056c

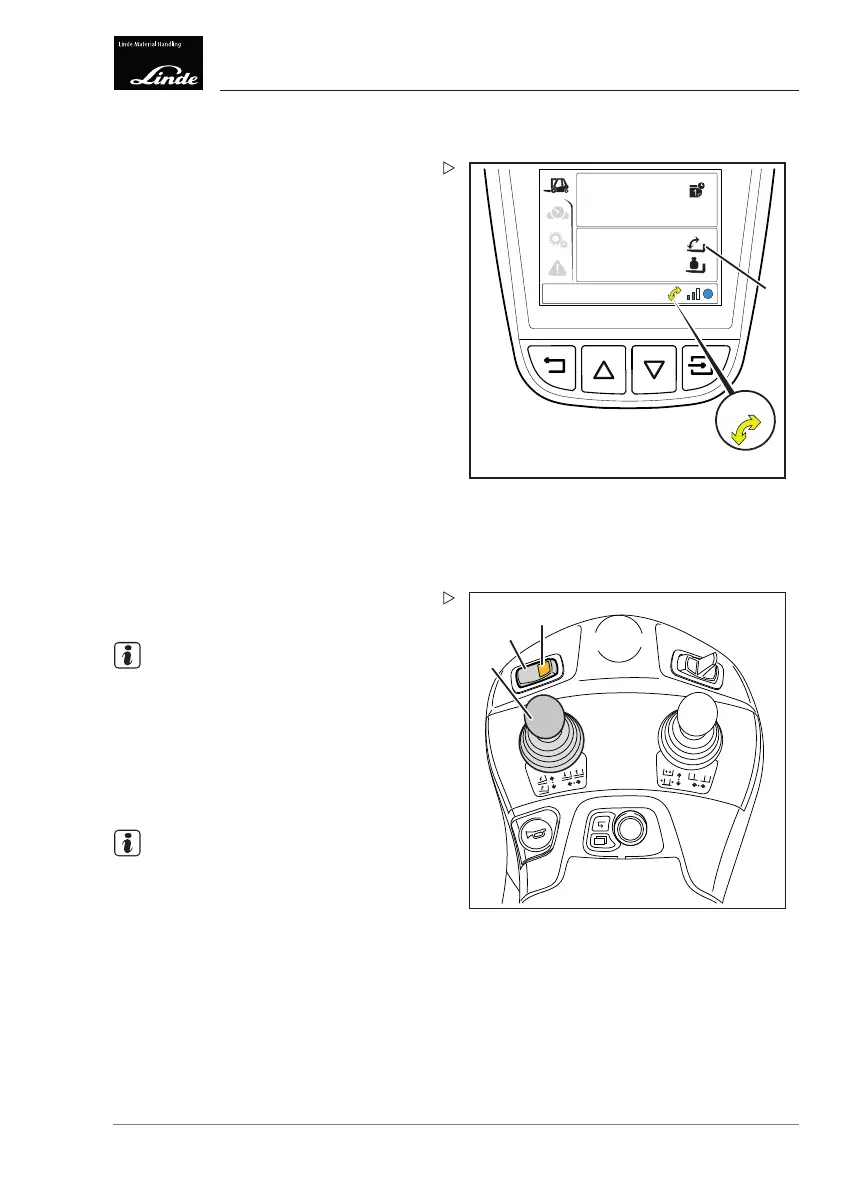

When the symbol (1) on the display unit
lights up, the mast positioning function can
be activated.
Programming
The tilt angle sensor system allows a specific
lift mast tilt to be programmed.
e3871623a
3
4
5
Use the joystick (3) to tilt the lift mast to the
required angle.
NOTE
The "Tilt angle" display (2) can also be selec-
ted for the required angle.
Press the push button (4) for longer than
two seconds.
The tilt angle is stored and the LED (5) flashes
twice. In addition, the buzzer sounds.
NOTE
The mast til
t angle is stored in relation to the
truck.
The tilt angl
eoftheliftmastinrelationtothe
ground depen
ds on the following influencing
factors:
• Load and load distribution
• Unevenness and gradient of the route being
driven
• Tyre wear
• Tyre pressure with pneumatic tyres
Operating Instructions – 3888011701 EN – 12/2017 159
