Linde E35 - Hydraulics; Hydraulic System: Checking the Oil Level

Service work
5
Hydraulics
Hydraulics
Hydraulic system:
Checking the oil level
ENVIRONMENT NOTE
Observe information regarding working with
consumables
NOTE
Oil specifications: Refer to the recommenda-
tions for consumables.
 Fully lower the fork ca
rriage.
 Switch off the truck.
 Pull up the cut-out in the rubber mat on the
bottom plate.
2
3
4
e3871142
1

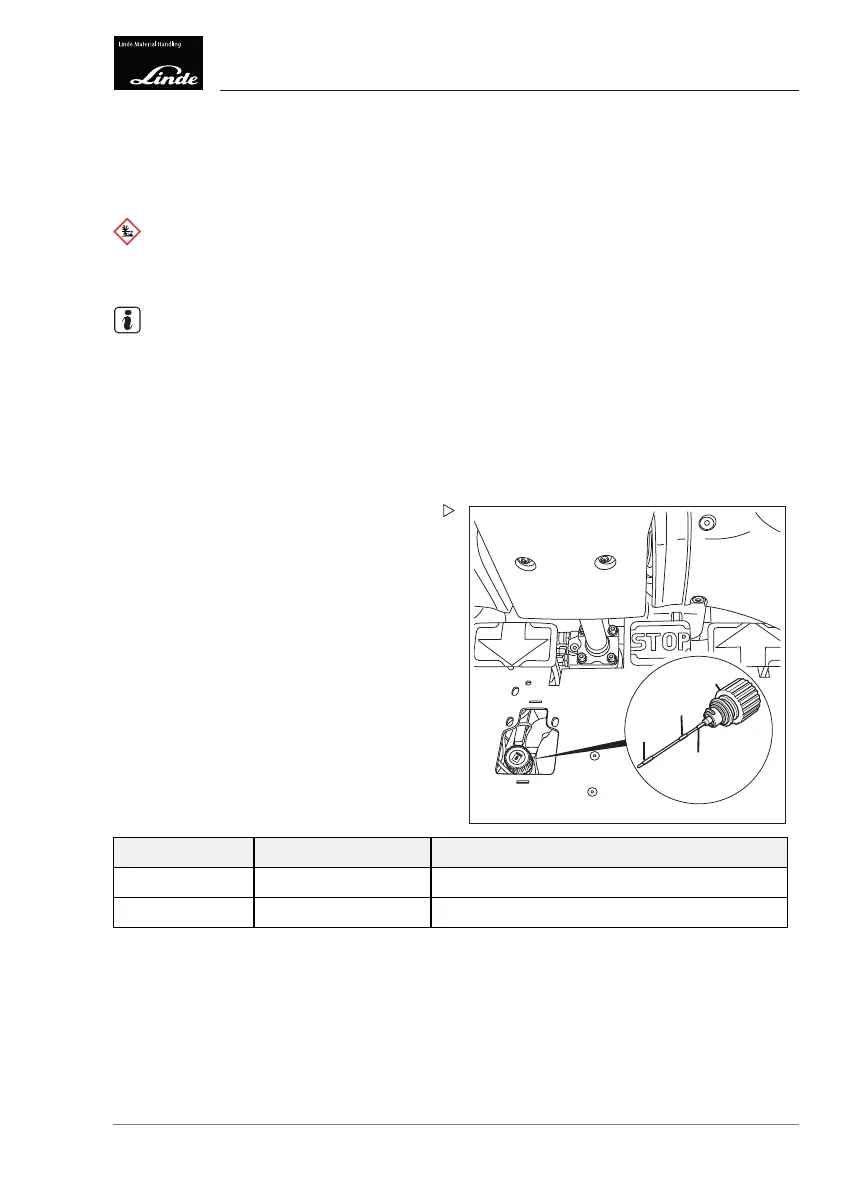

The oil dipstick (4) is located on the breather
filter (3).
 Through the opening in the bottom plate,
loosen the breather filter (3) by turning it half
a turn to the left and pull out the oil dipstick
(4).
 Wipe the oil dipst
ick (4) with a clean cloth,
reinsert the oil d
ipstick and lock the breather
filter (3) in place
by turning it half a turn to
the right.
 Loosen the breather filter (3) again and pull
out the oil dipstick.
 Check the oil level on the oil dipstick (4).
Markings (1, 2)
for the different lift heights:
Mark
Filling quantity
Lift height
1
Approx. 22 l Lift height up to 5165 mm
2
Approx. 31 l Lift height of 5175 mm or higher
 Top up the hydraulic oil to the appropriate
oil level marking (1) or (2) as required.
 Reinsert the breather filter (3) and turn it half
a turn to the right to lock it in place.
 Close the cut-out in the rubber mat.
Operating Instructions – 3888011701 EN – 12/2017 247
