Linde E35 - Lift Mast - Adjusting the Chain

Service work
5
Load lift system

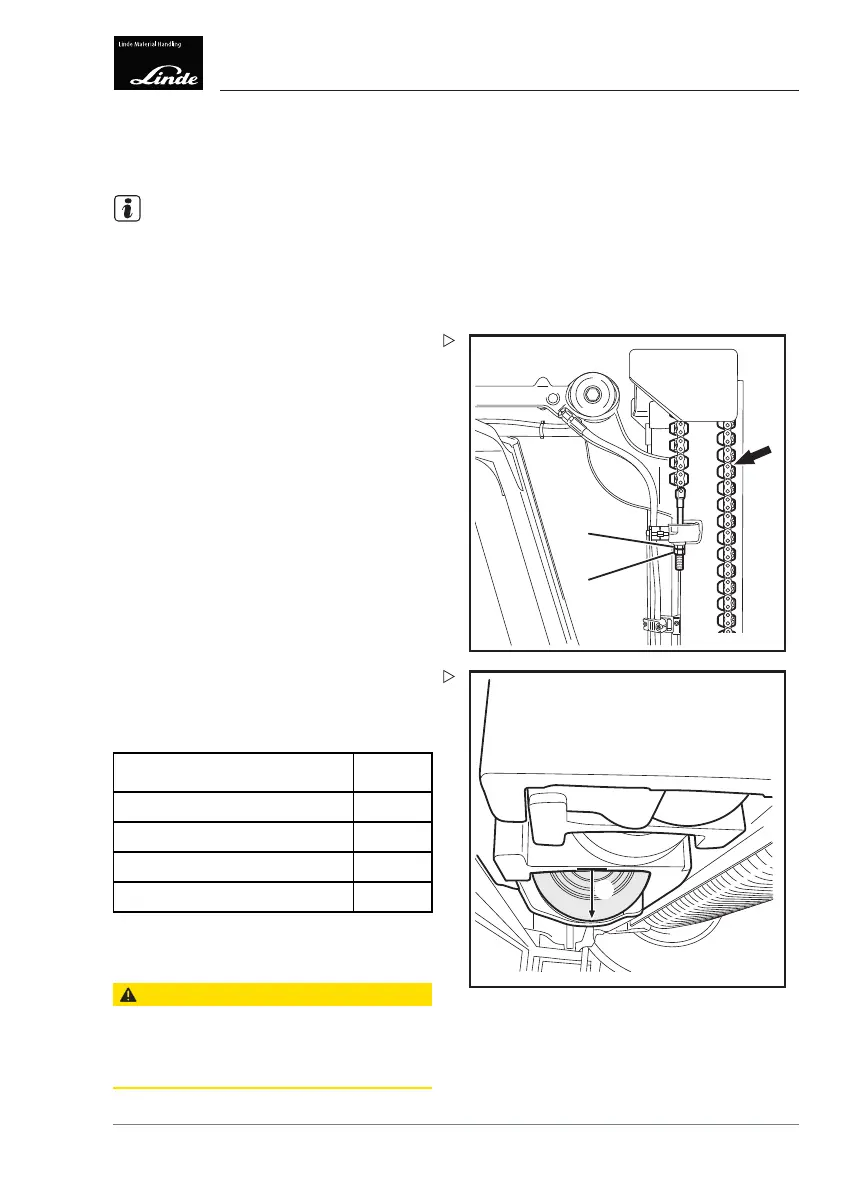

Lift mast — adjusting the chain
Securing the standard lift mast
NOTE
Theliftmastchainstretche
s during operation
and therefore has to be rea
djusted on the right
and left sides.
 Fully lower the lift mast
2
1
d3911397
 Release counter nut (2).
 Adjust chain at adjusting nut (1) of chain
anchor.
X
e3871560
The lower guide roller of the fork carriage must
not protrude beyond the guide rail of the inner
lift mast by more than the specific dimension
X.
Lift mast model
Dimen-
sion X
1514 standard 27 mm
1515 standard 30 mm
1522 standard 11 mm
1523 standard 25 mm
 Tighten counter nut (2) securely.
 Also adjust second chain.
CAUTION
When extending the lift mast, it must not touch the
end stops.
Fully extend the lift mast and check clearance to
end stops.
Operating Instructions – 3888011701 EN – 12/2017 255
