Linde E35 - Truck Overview

3

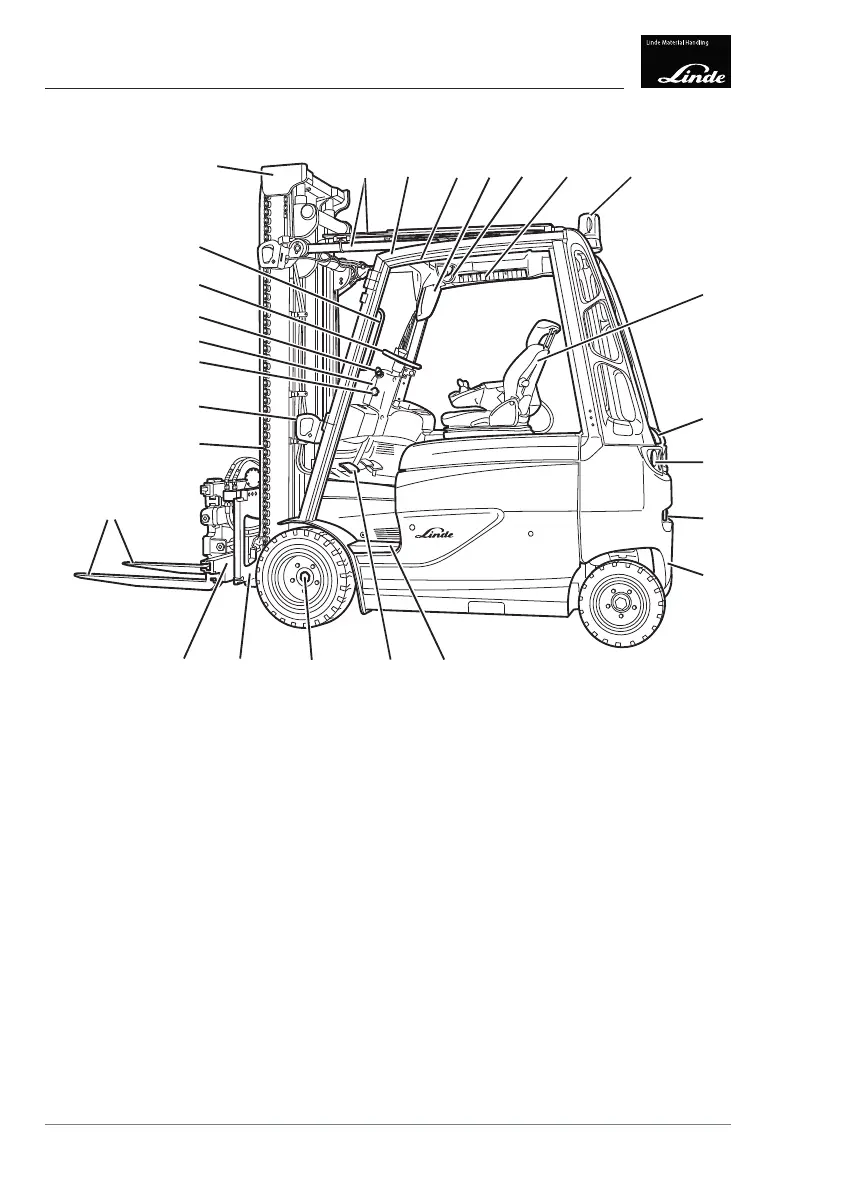

Overview
Truck overview
Truck overview
26
25
24
23
22
21
20
18 17 16 15 14
9
10
11
12
13
19
3
1 2
5
6
7
8
4
e3871101
1Liftmast
2 Tilt cylinder
3 Overhead guard
4 Load capacity diagram
(on the inside of the overhead guard)
5 Display unit
6 Rear-view mirror
7 Switch panel
Toggle switch for special equipment
8 Rotating beacon/flashing beacon
9 Driver's seat with armrest and operating
console
10 Rear flap
11 Left tail light (LED)
12 Towing pin
13 Counterweight
14 Step
15 Pedal group/reverse accelerator pedal
16 Left wheel gear
17 Fork carriage
18 Sideshift
19 Fork arms
20 Lift mast chain
21 Front left working spotlight
22 Steering column adjusting knob
23 Steering column
24 Flasher unit / windscreen wiper switch
25 Steering wheel
26 Handhold
30 Operating Instructions – 3888011701 EN – 12/2017
