Safety
Emergency lowering
Emergency lowering
If there is a malfunction, the fork carriage can
be lowered manually.
e3861398a
1
1
2
3

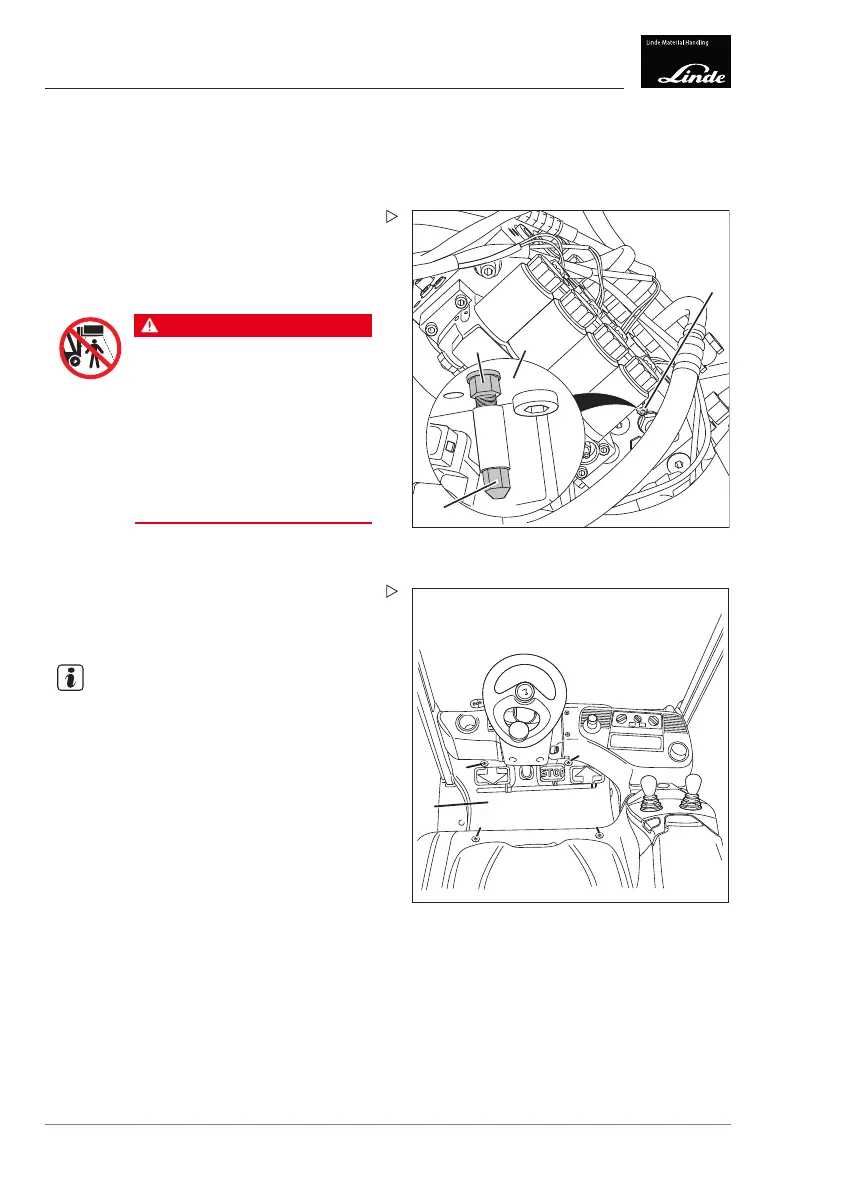

The control valve (3), which i
s located under
the bottom plate for the pedal
s on the right-
hand side of the truck, is equ
ipped with an
emergency lowering screw (1
). This is secured
and sealed with a self-locki
ng nut (2).
DANGER
Risk of accident or danger to life when
lowering the fork carriage with fork
arms.
People must not stand near the fork
arms when they are being lowered.
Leave the socket wrench on the screw
(1) of the control valve (3) during
the lowering process to ensure that
lowering can be interrupted at any
time.
Remove the rubber mat from the floor plate.
4
55
5
5
e3871604
Remove the bottom plate (4) by unscrewing
the four fastening screws (5).
Remove the bottom plate (4) entirely
NOTE
When doing so, make sure beforehand that
the plug connector is detached from the
accelerator and the brake pedal switch.
Slowly turn the emergency lowering screw
(1) about 3 turns anti-clockwise using
an 8-mm AF socket wrench until the fork
carriage has been completely lowered.
