Linde E35 - Checking and Lubricating the Sideshift (Special Equipment)

Service work
5
Load lift system
Checking and lubricating the
sideshift (special equipment)
ENVIRONMENT NOTE
Observe information regarding the use of
consumables.
 Check the hydraulic lines for abrasion spots
and replace them if necessary.
 Check the hydraulic connections and
mounting elements for secure attachment
and wear. Tighten or replace them as
necessary.
 Check the cylinder for damage and leak
tightness.
NOTE
Grease the sideshift after cleaning each time
it is cleaned. Use lubricating grease as set
out in the recommendation for consumables.
It is better to apply a little grease to the
bearing points frequently than a lot of grease
infrequently.

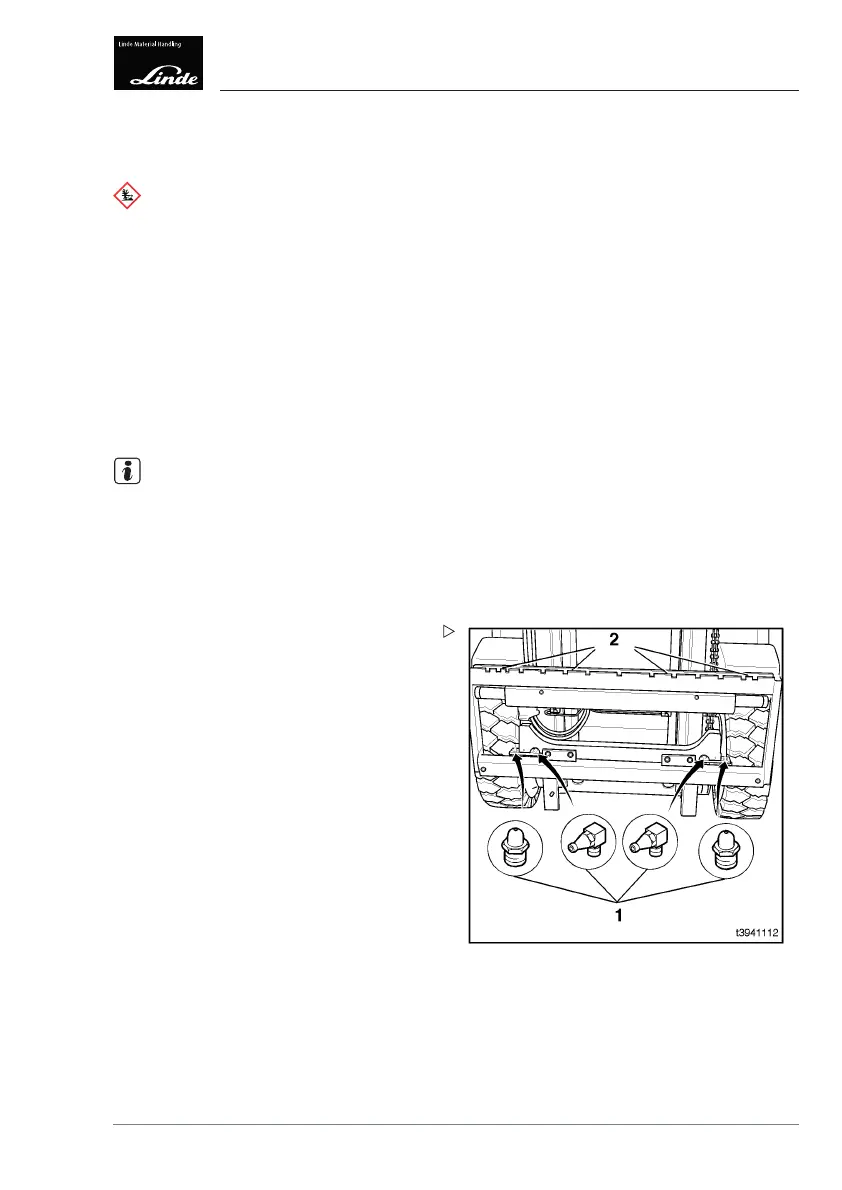

 Move the fork arms s
o that access can be
gained to the 4 lubr
icating nipples (1).
 Lower the sideshift until the fork arms touch
the ground.
 Apply lubricating grease to the lubricating
nipples (1) for the support rollers on the fork
carriage, until grease escapes at the side.
 Apply lubricating grea
se to the lubricating
nipples (2) for the wear
strips on the fork
carriage at the top unti
l grease escapes at
the side.
Operating Instructions – 3888011701 EN – 12/2017 259
