Operation
4
Operation
Joystick —
Central-lever operation
WARNING
There is a risk of becoming trapped
between parts due to the moving lift
mast or the attachment.
Therefore, never reach into or enter
the lift mast or the area between the lift
mast and the truck.
The lifting system and attachments
should only ever be used for their
proper purpose.
Drivers must be instructed in the
handling of the lifting system and
attachments.
Take note of the maximum lift height.
e3861473a

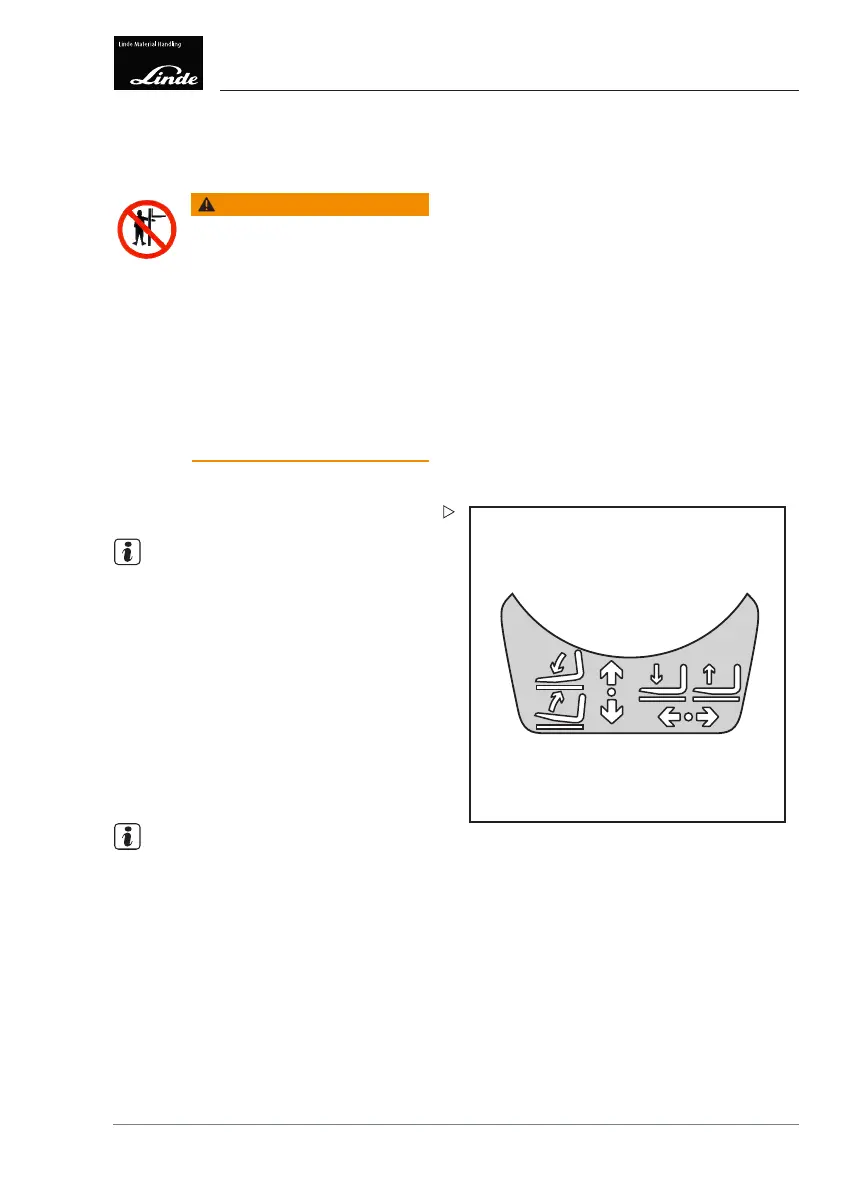

Operating the lifting and tilting equipment
NOTE
On the version with central lever operation,
moving the joystick to an intermediate position
(approx. 45°) will activate both functions at the
same time (e.g. lifting and tilting).
Take note of the switching symbols with
arrows.
The joystick must always be operated gently,
never jerkily. Moving the joystick determines
the lifting, lowering and tilt speed. After the
joystick is released, it automatically returns to
its initial position.
NOTE
Joysticks only function when the truck is
switched on and the driver is sitting in the
driver's seat.
Operating Instructions – 3888011701 EN – 12/2017 129
