Operation
Workingwithaload
2
1
d3911401
Adjusting the fork arm distan
ce
WARNING
Risk of injury from heavy fork arms.
Use supporting equipment.
NOTE
The load centre of gravity must be midway
between the fork arms.

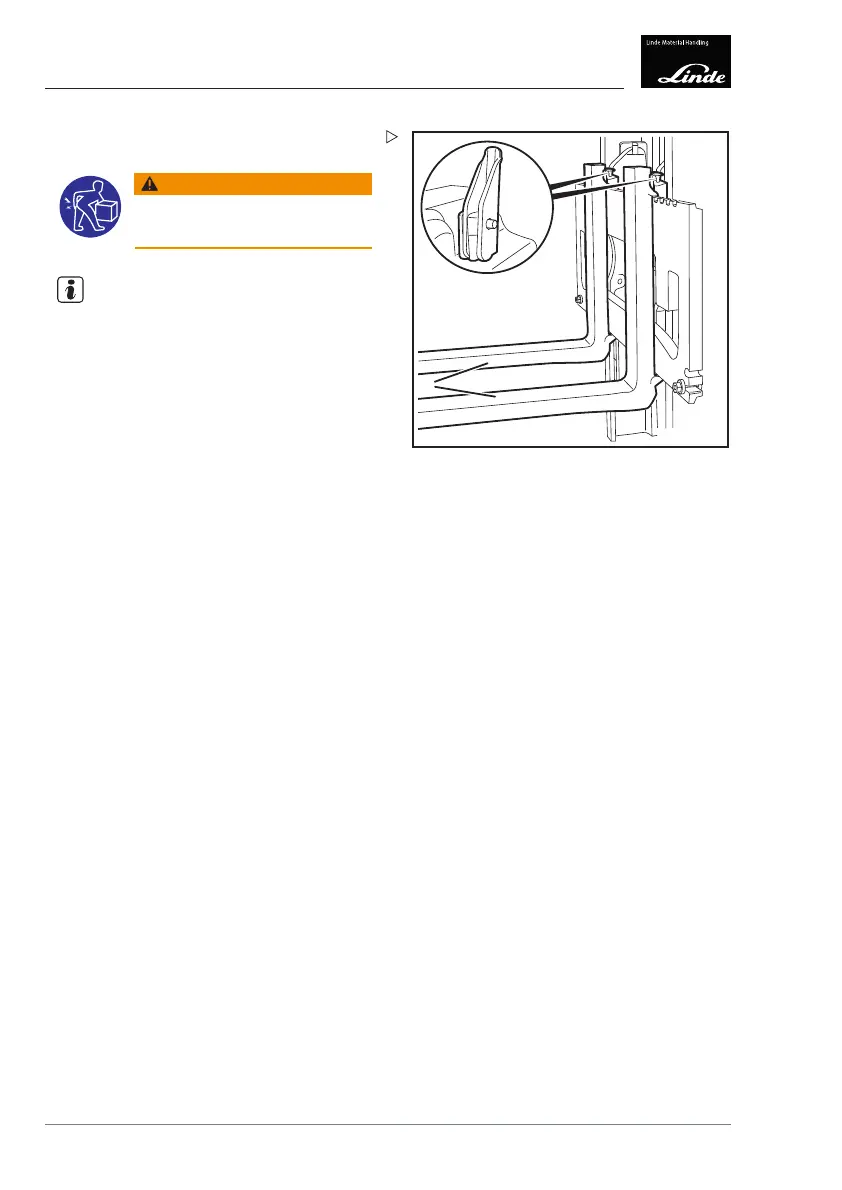

Raise the fork quick-release levers(1).
Adjust the fork arms (2) i
nwards or outwards
according to the load to
be lifted.
Make sure that both forks are equally distant
from the truck centre.
Allow the stopping lever (1) to snap into
place in a groove on the fork carriage.
